To Syslog or Not

October 17, 2019October 25, 2019by Alan Baugher1 Comment

Docker Image(s) provide fantastic value, as this platform-as-a-service methodology gets us all out of the painful “install-business”. We may focus effort on the business value that a solution provides.

However, the associated docker containers may provide some challenges.

Business Risks:

For the CA API Gateway solution, we have two (2) business risks to address:

The docker container of the API Gateway solution may be ephemeral & replaced with newer releases.
- Example: Any API Gateway application logs that reside on the docker container, as a file, may be lost when the container version is updated or redeployed.
The docker container of the associated MySQL Database may have growth concerns with the default OOTB API Gateway Audit Event process.
- Example: The MySQL Database of ibdata1 may continue to grow and be impacted by current disk constraints. To reduce MySQL Database size and remove the low value audit data, it will be necessary to declare an outage window to export (w/o audit data)/resize mysql db/import the data (w/o audit data).

Resolution(s):

To address the above risks, we may leverage the syslog feature set provided by the API Gateway:

The API Gateway documentation does allow for syslog configuration for the primary Audit Event and the application logs.

This blog entry will review the use of syslog, create individual syslog files for each API Gateway application, avoid common mis-configurations, and how to validate the processes.

Before we start this process, to provide justification, lets review how “large” is the API Gateway Audit Events in the MySQL Database & that API Gateway logs are no longer retained on the container (as of r9.4 release)

Validation of API Gateway Database Growth & Application Logs:

Pre-Step 00: Review the current MySQL ibdata1 file size (via docker command)

docker exec -it -u root -e TERM=XTERM ssg94_mysql57 /bin/bash -c "find /var -type f -mtime -1 -ls | head -5"

Pre-Step 01: Review the audit tables sizes in the ‘ssg’ MySQL database with the below query:

docker exec -it -u root -e TERM=xterm `docker ps -a | grep mysql:5.7 | awk '{print $1}'`  mysql --user=gateway --password=7layer ssg -e "SELECT TABLE_NAME, table_rows, data_length, index_length, round(((data_length + index_length) / 1024 / 1024),2) 'Size in MB' FROM information_schema.TABLES WHERE table_schema = 'ssg' ORDER BY (data_length + index_length) DESC; "

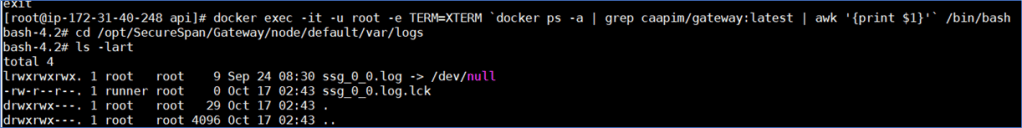

Pre-Step 02: Validate no API Gateway application files reside and primary ssg file is redirect to /dev/null (r9.4)

docker exec -it -u root -e TERM=XTERM `docker ps -a | grep caapim/gateway:latest | awk '{print $1}'` /bin/bash -c 'ls -larth /opt/SecureSpan/Gateway/node/default/var/logs'

Enabling Syslog for API Gateway Applications

Step 1: Enable & update the remote rsyslogd service on the docker host (or remote host) [/etc/rsyslog.conf]

Enable/Allow UDP 514
- Un-comment two (2) lines
Define unique syslog facilities for each API GW application & the primary Audit Event
- Note: Use the mapping of names from syslog parameter to facilities # •https://tools.ietf.org/html/rfc5424 [Page 10]
- See example(s) in the image below
Exclude duplicate logging to /var/messages
- Add a semi-colon with the facility.none on this line
- ;local3.none;local4.none;local5.none;local6.none
Restart the updated rsyslog.service
- systemctl restart rsyslog.service
Validate UDP 514 is available.
- netstat -an | grep :514

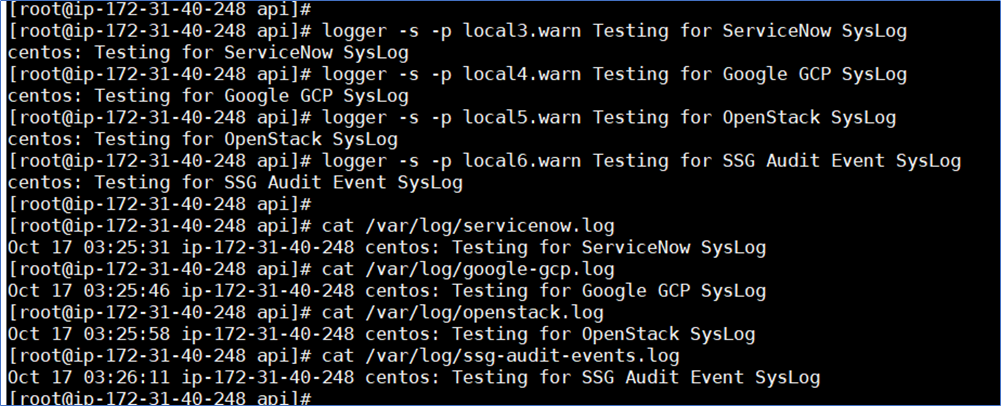

Step 2: Validate Syslog is functioning correctly with the facilities (syslog naming convention) using the OS command:

logger -s -p local3.warn Testing for ServiceNow SysLog
logger -s -p local4.warn Testing for Google GCP SysLog
logger -s -p local5.warn Testing for OpenStack SysLog
logger -s -p local6.warn Testing for SSG Audit Event SysLog

Step 3: Enable syslog for each API Application with a unique log file associated to a unique facility number.

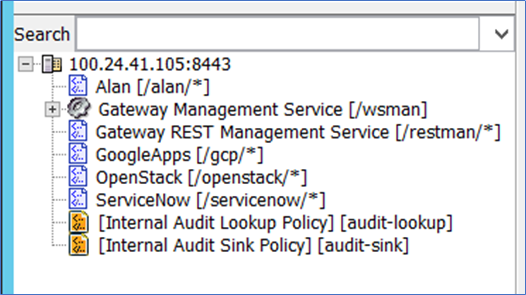

a. Review the associated API Gateway Applications in the API Gateway Policy Manager and their associated URI strings,e.g. /gcp/*, /servicenow/*, etc.

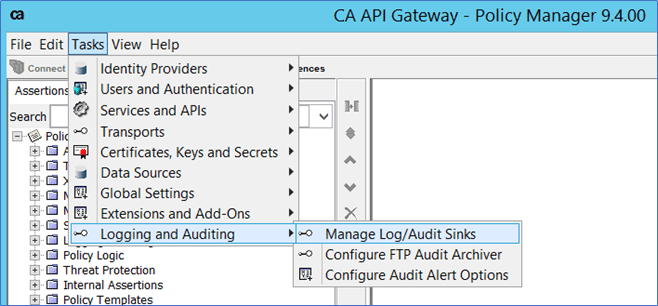

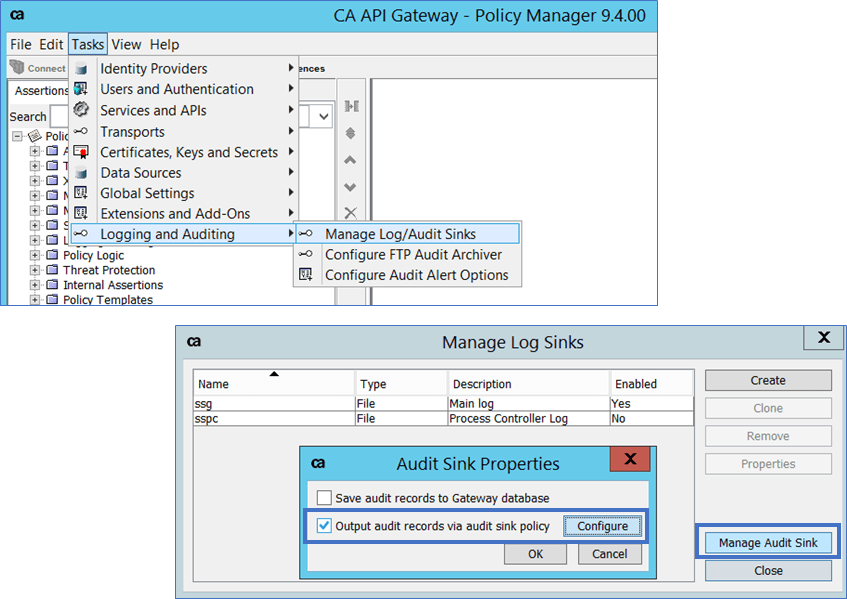

b. Open the API Gateway Policy Manager / Tasks / Logging and Auditing / Manage Log/Audit Sinks Window

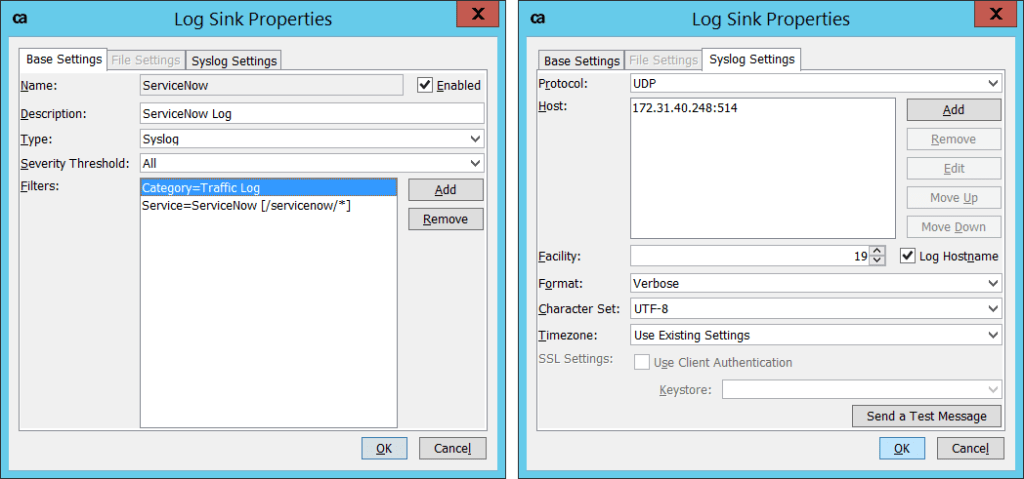

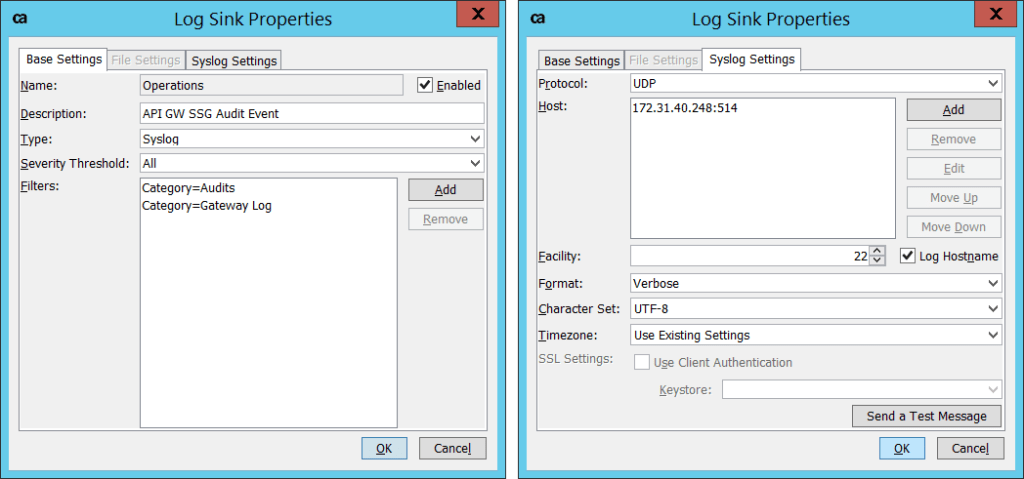

c. Create new Log Sinks for every API Gateway Application. Configure these for ‘syslog’, with the correct facility number, and ensure the FILTER is set correctly with the Category & Services URI string match (otherwise you may not see any data). Suggest Category=Traffic Log (as your first iteration). Reference for facility number (0-23) to match syslog naming conventions: https://tools.ietf.org/html/rfc5424 [page 10]

Step 4: Validate the API Gateway Application Syslog with remote web service call via curl to the various application URI strings.

curl -s --insecure  -u pmadmin:7layer  https://$(hostname -s):8443/gcp/apple
cat /var/log/google-gcp.log | tail -1

curl -s --insecure  -u pmadmin:7layer  https://$(hostname -s):8443/servicenow/pear
cat /var/log/servicenow.log | tail -1

curl -s --insecure  -u pmadmin:7layer  https://$(hostname -s):8443/openstack/banana
cat /var/log/openstack.log | tail -1

Enabling Syslog for API Gateway Audit Event

The current documentation for enabling syslog for the API Gateway Audit Event process is clear, but administrators may have a challenge if the FILTER is not set correctly. To address this common mis-configuration, the follow steps are provided to run through the configuration, and clarify where to avoid this challenge.

Ref: https://techdocs.broadcom.com/content/broadcom/techdocs/us/en/ca-enterprise-software/layer7-api-management/api-gateway/9-4/security-configuration-in-policy-manager/tasks-menu-security-options/manage-log-audit-sinks/how-to-audit-to-a-remote-syslog.html

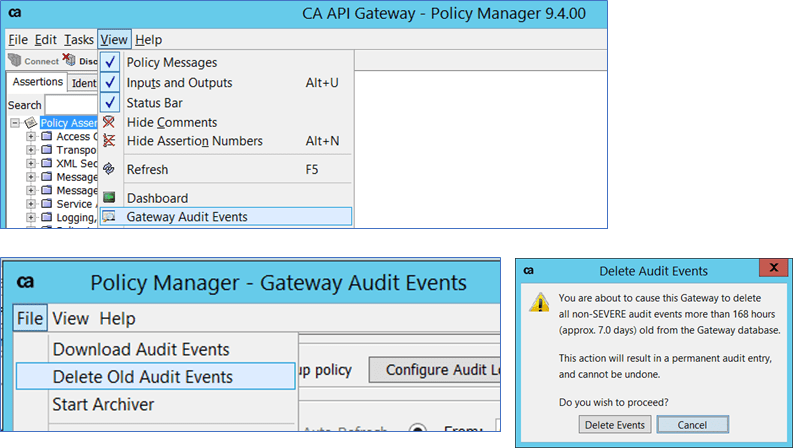

Step 1AE: Review the prior OOTB configuration / view. The API Gateway Audit Events are stored in the MySQL database, and the built-in view tool allows for queries to be performed. However, unless the “File/Delete Old Audit Events” is executed, growth will continue to impact MySQL db.

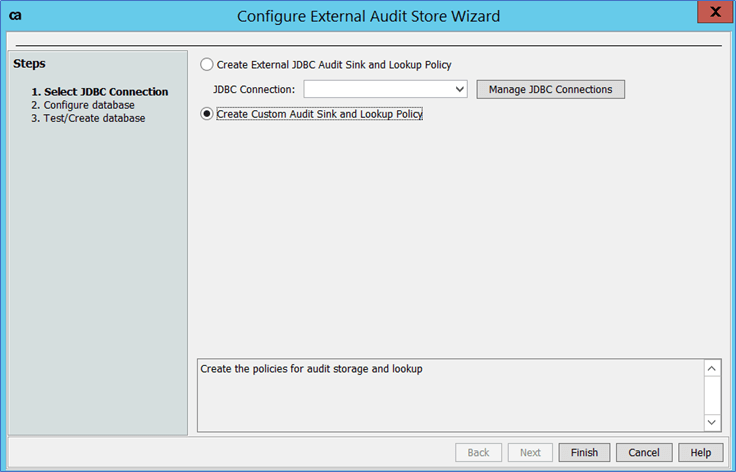

Step 2AE: Configure the API Gateway Audit Events to not use the MySQL database. The below process will create a “[Internal Audit Sink Policy]” that we will use to redirect.

Step 3AE: Important Step: Disable “all” assertions in the newly created “[Internal Audit Sink Policy]”.

Double-click on the lower-left panel item ‘[Internal Audit Sink Policy]”.
The right-upper panel will displays nine (9) line items.
Use mouse to select all lines, then click on the RED button on the middle column to disable all assertions (lines).

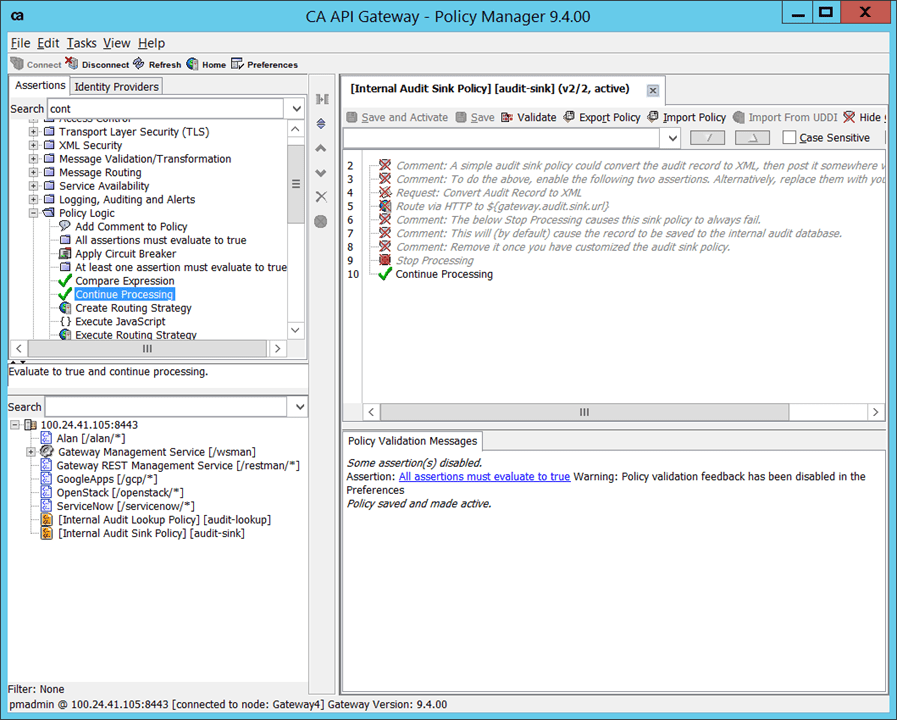

In the upper-left panel, search for the string “continue”
The object “Continue Processing” will display
Use mouse to drag-n-drop this item to the upper-right panel.
Click “Save and Activate” selection on the upper-right panel, as shown in the image below.

Step 4AE: Now create the new API Gateway Log Sink for Audit Events. Ensure Filters are broad to the following Categories: Audits and Gateway Log. Avoid any additional filters. Ensure the facility number matches the syslog naming convention.

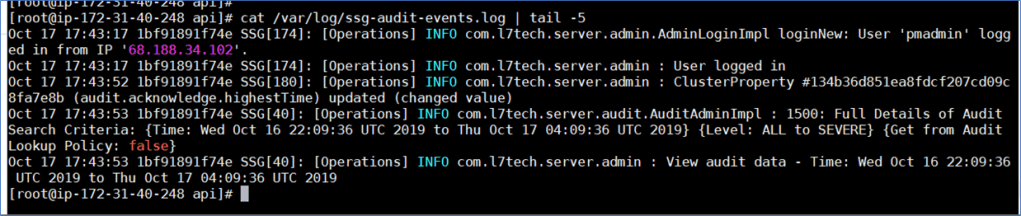

Step 5AE: Confirm that audit events are being sent to the syslog defined.

Step 6AE: Confirm that API Gateway configuration for syslog is retained after “destroying” the docker container, and rebuilding it to connect to the existing MySQL database.

a. Destroy and rebuild API Gateway container (r9.4)

docker stop ssg94
docker rm ssg94
docker-compose -p ssg94 -f ./docker-compose-ssg94-join-db.yml up -d
cat /var/log/ssg-audit-events.log | tail -5

b. Wait one minute and try again

cat /var/log/ssg-audit-events.log | tail -5

Additional Notes/Recommendations:

The primary API Gateway startup ‘ssg’ logs, that are accessible via ‘docker logs containerID’ may be converted to syslog, but this process will impact the JSON formatting that that ‘docker logs containerID’ uses.

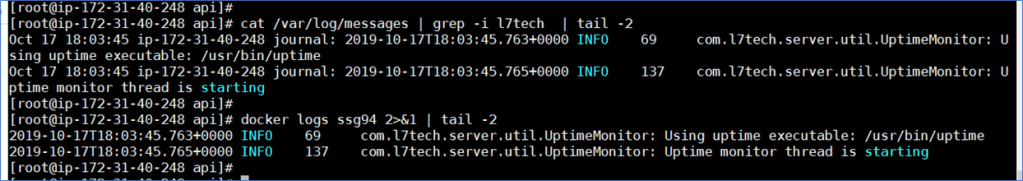

A review of the OOTB syslog for /var/log/messages shows that these docker messages are also already forwarded here. Recommend skipping this unnecessary configuration step.

cat /var/log/messages | grep -i l7tech  | tail -2
docker logs ssg94 2>&1 | tail -2

Reference Table from rfc5424 ( https://tools.ietf.org/html/rfc5424 ). Facilities #16-22 are open and not predefined for other applications.

View of API Gateway “Manage Log Sinks” Window

View of the “View Logs” Window for “Log Sinks” may display, but no data will be returned, as there are no local files. See prior screen shot where ssg_0_0.log is redirected to /dev/null.

If the above screen does not load correctly (r9.4), then in the docker-compose file, add in an additional JVM switch:

EXTRA_JAVA_ARGS: "         -Dcom.l7tech.server.disableFileLogsinks=false "

If you wish to know more or need assistance, please contact us.

Be safe and automate your backups for CA Directory Data DSAs to LDIF

October 16, 2019October 25, 2019by Alan BaugherLeave a comment

The CA Directory solution provides a mechanism to automate daily on-line backups, via one simple parameter:

dump dxgrid-db period 0 86400;

Where the first number is the offset from GMT/UTC (in seconds) and the second number is how often to run the backup (in seconds), e.g. Once a day = 86400 sec = 24 hr x 60 min/hr x 60 sec/min

Two Gaps/Challenge(s):

History: The automated backup process will overwrite the existing offline file(s) (*.zdb) for the Data DSA. Any requirement or need to perform a RCA is lost due to this fact. What was the data like 10 days ago? With the current state process, only the CA Directory or IM logs would be of assistance.

Size: The automated backup will create an offline file (*.zdb) footprint of the same size as the data (*.db) file. If your Data DSA (*.db) is 10 GB, then your offline (*.zdb) will be 10 GB. The Identity Provisioning User store has four (4) Data DSAs, that would multiple this number , e.g. four (4) db files + four (4) offline zdb files at 10 GB each, will require minimal of 80 GB disk space free. If we attempt to retain a history of these files for fourteen (14) days, this would be four (4) db + fourteen (14) zdb = eighteen (18) x 10 GB = 180 GB disk space required.

Resolutions:

Leverage the CA Directory tool (dxdumpdb) to convert from the binary data (*.db/*.zdb) to LDIF and the OS crontab for the ‘dsa’ account to automate a post ‘online backup’ export and conversion process.

Step 1: Validate the ‘dsa’ user ID has access to crontab (to avoid using root for this effort). cat /etc/cron.allow

If access is missing, append the ‘dsa’ user ID to this file.

Step 2: Validate that online backup process have been scheduled for your Data DSA. Use a find command to identify the offline files (*.zdb ). Note the size of the offline Data DSA files (*.zdb).

Step 3: Identify the online backup process start time, as defined in the Data DSA settings DXC file or perhaps DXI file. Convert this GMT offset time to the local time on the CA Directory server. (See references to assist)

Step 4: Use crontab -e as ‘dsa’ user ID, to create a new entry: (may use crontab -l to view any entries). Use the dxdumpdb -z switch with the DSA_NAME to create the exported LDIF file. Redirect this output to gzip to automatically bypass any need for temporary files. Note: Crontab has limited variable expansion, and any % characters must be escaped.

Example of the crontab for ‘dsa’ to run 30 minutes after (at 2 am CST) the online backup process is scheduled (at 1:30 am CST).

# Goal:  Export and compress the daily DSA offline backup to ldif.gz at 2 AM every day
# - Ensure this crontab runs AFTER the daily automated backup (zdb) of the CA Directory Data DSAs
# - Review these two (2) tokens for DATA DSAs:  ($DXHOME/config/settings/impd.dxc  or ./impd_backup.dxc)
#   a)   Location:  set dxgrid-backup-location = "/opt/CA/Directory/dxserver/backup/";
#   b)   Online Backup Period:   dump dxgrid-db period 0 86400;
#
# Note1: The 'N' start time of the 'dump dxgrid-db period N M' is the offset in seconds from midnight of UTC
#   For 24 hr clock, 0130 (AM) CST calculate the following in UTC/GMT =>  0130 CST + 6 hours = 0730 UTC
#   Due to the six (6) hour difference between CST and UTC TZ:  7.5 * 3600 = 27000 seconds
# Example(s):
#   dump dxgrid-db period 19800 86400;   [Once a day at 2330 CST]
#   dump dxgrid-db period 27000 86400;   [Once a day at 0130 CST]
#
# Note2:  Alternatively, may force an online backup using this line:
#               dump dxgrid-db;
#        & issuing this command:  dxserver init all
#
#####################################################################
#        1      2         3       4       5        6
#       min     hr      d-o-m   month   d-o-w   command(s)
#####################################################################
#####
#####  Testing Backup Every Five (5) Minutes ####
#*/5 * * * *  . $HOME/.profile && dxdumpdb -z `dxserver status | grep "impd-main" | awk "{print $1}"` | gzip -9 > /tmp/`hostname`_`dxserver status | grep "impd-main" | awk '{print $1}'`_`/bin/date --utc +\%Y\%m\%d\%H\%M\%S.0Z`.ldif.gz
#####
#####  Backup daily at 2 AM CST  -  30 minutes after the online backup at 1:30 AM CST #####
#####
0 2 * * *    . $HOME/.profile &&  dxdumpdb -z `dxserver status | grep "impd-main"   | awk "{print $1}"` | gzip -9 > /tmp/`hostname`_`dxserver status | grep "impd-main"   | awk '{print $1}'`_`/bin/date --utc +\%Y\%m\%d\%H\%M\%S.0Z`.ldif.gz
0 2 * * *    . $HOME/.profile &&  dxdumpdb -z `dxserver status | grep "impd-co"     | awk "{print $1}"` | gzip -9 > /tmp/`hostname`_`dxserver status | grep "impd-co"     | awk '{print $1}'`_`/bin/date --utc +\%Y\%m\%d\%H\%M\%S.0Z`.ldif.gz
0 2 * * *    . $HOME/.profile &&  dxdumpdb -z `dxserver status | grep "impd-inc"    | awk "{print $1}"` | gzip -9 > /tmp/`hostname`_`dxserver status | grep "impd-inc"    | awk '{print $1}'`_`/bin/date --utc +\%Y\%m\%d\%H\%M\%S.0Z`.ldif.gz
0 2 * * *    . $HOME/.profile &&  dxdumpdb -z `dxserver status | grep "impd-notify" | awk "{print $1}"` | gzip -9 > /tmp/`hostname`_`dxserver status | grep "impd-notify" | awk '{print $1}'`_`/bin/date --utc +\%Y\%m\%d\%H\%M\%S.0Z`.ldif.gz

Example of the above lines that can be placed in a bash shell, instead of called directly via crontab. Note: Able to use variables and no need to escape the `date % characters `

# set DSA=main &&   dxdumpdb -z `dxserver status | grep "impd-$DSA" | awk '{print $1}'` | gzip -9 > /tmp/`hostname`_`dxserver status | grep "impd-$DSA" | awk '{print $1}'`_`/bin/date --utc +%Y%m%d%H%M%S.0Z`.ldif.gz
# set DSA=co &&     dxdumpdb -z `dxserver status | grep "impd-$DSA" | awk '{print $1}'` | gzip -9 > /tmp/`hostname`_`dxserver status | grep "impd-$DSA" | awk '{print $1}'`_`/bin/date --utc +%Y%m%d%H%M%S.0Z`.ldif.gz
# set DSA=inc &&    dxdumpdb -z `dxserver status | grep "impd-$DSA" | awk '{print $1}'` | gzip -9 > /tmp/`hostname`_`dxserver status | grep "impd-$DSA" | awk '{print $1}'`_`/bin/date --utc +%Y%m%d%H%M%S.0Z`.ldif.gz
# set DSA=notify && dxdumpdb -z `dxserver status | grep "impd-$DSA" | awk '{print $1}'` | gzip -9 > /tmp/`hostname`_`dxserver status | grep "impd-$DSA" | awk '{print $1}'`_`/bin/date --utc +%Y%m%d%H%M%S.0Z`.ldif.gz
#

Example of the output:

Monitor with tail -f /var/log/cron (or syslog depending on your OS version), when the crontab is executed for your ‘dsa’ account

View the output folder for the newly created gzip LDIF files. The files may be extracted back to LDIF format, via gzip -d file.ldif.gz. Compare these file sizes with the original (*.zdb) files of 2GB.

Recommendation(s):

Implement a similar process and retain this data for fourteen (14) days, to assist with any RCA or similar analysis that may be needed for historical data. Avoid copied the (*.db or *.zdb) files for backup, unless using this process to force a clean sync between peer MW Data DSAs.

The Data DSAs may be reloaded (dxloadb) from these LDIF snapshots; the LDIF files do not have the same file size impact as the binary db files; and as LDIF files, they may be quickly search for prior data using standard tools such as grep “text string” filename.ldif.

This process will assist in site preparation for a DAR (disaster and recovery) scenario. Protect your data.

References:

dxdumpdb

https://techdocs.broadcom.com/content/broadcom/techdocs/us/en/ca-enterprise-software/layer7-identity-and-access-management/directory/14-1/administrating/tools-to-manage-ca-directory/dxtools/dxdumpdb-tool-export-data-from-a-datastore-to-an-ldif-file.html

dump dxgrid-db

https://techdocs.broadcom.com/content/broadcom/techdocs/us/en/ca-enterprise-software/layer7-identity-and-access-management/directory/14-1/reference/commands-reference/dump-dxgrid-db-command-take-a-consistent-snapshot-copy-of-a-datastore.html

If you wish to learn more or need assistance, contact us.

CA Identity Manager Task and Event State Codes

October 13, 2019October 25, 2019by Amit SinhaLeave a comment

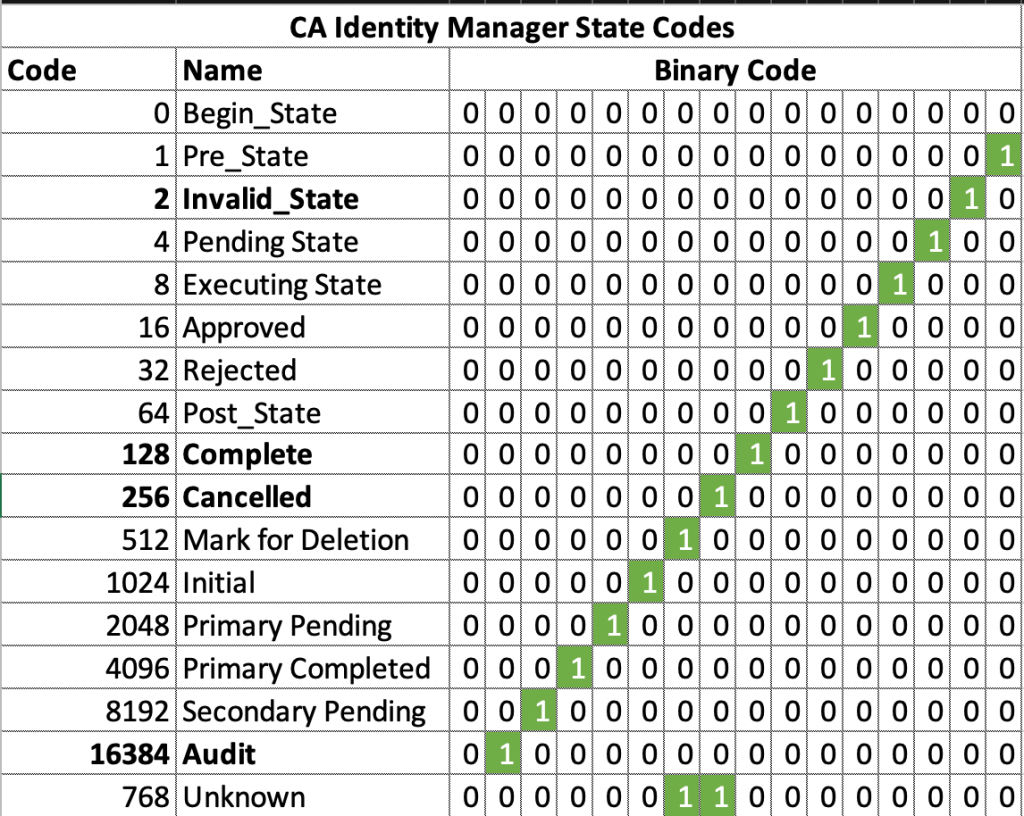

A reference for the two bytes Task and Event Codes for CA Identity Manager listed below. State code of 128, for an event or task, indicates that the state machine has completed all processing associated with the respective task or event.

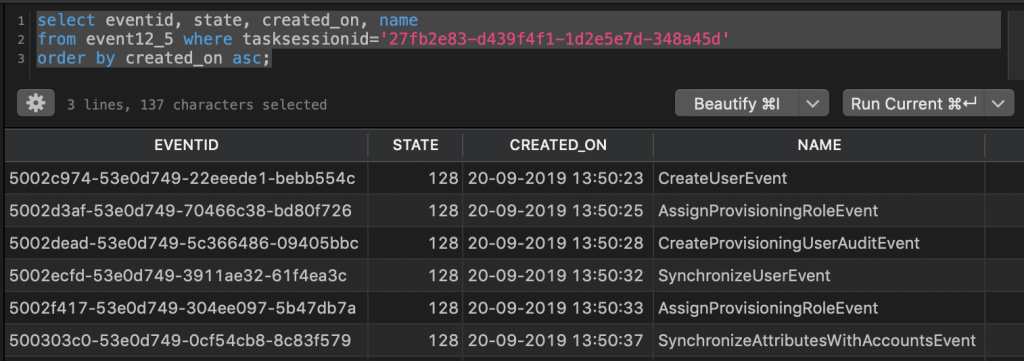

Example of the events associated with an example Create User Task, and respective final states

Event state transitions and associated code knowledge helps with getting a better understanding when troubleshooting failed or tasks stuck in progress. As a good practice, when testing a use case, keep an record of expected execution outcome for the use case (at an event level.)

Contact us if you have questions or are experiencing problems with your IAM deployment. We will get you on the path to success and help you realize real business value from your IAM program.

API Gateway and Docker Lab

October 13, 2019October 25, 2019by Alan BaugherLeave a comment

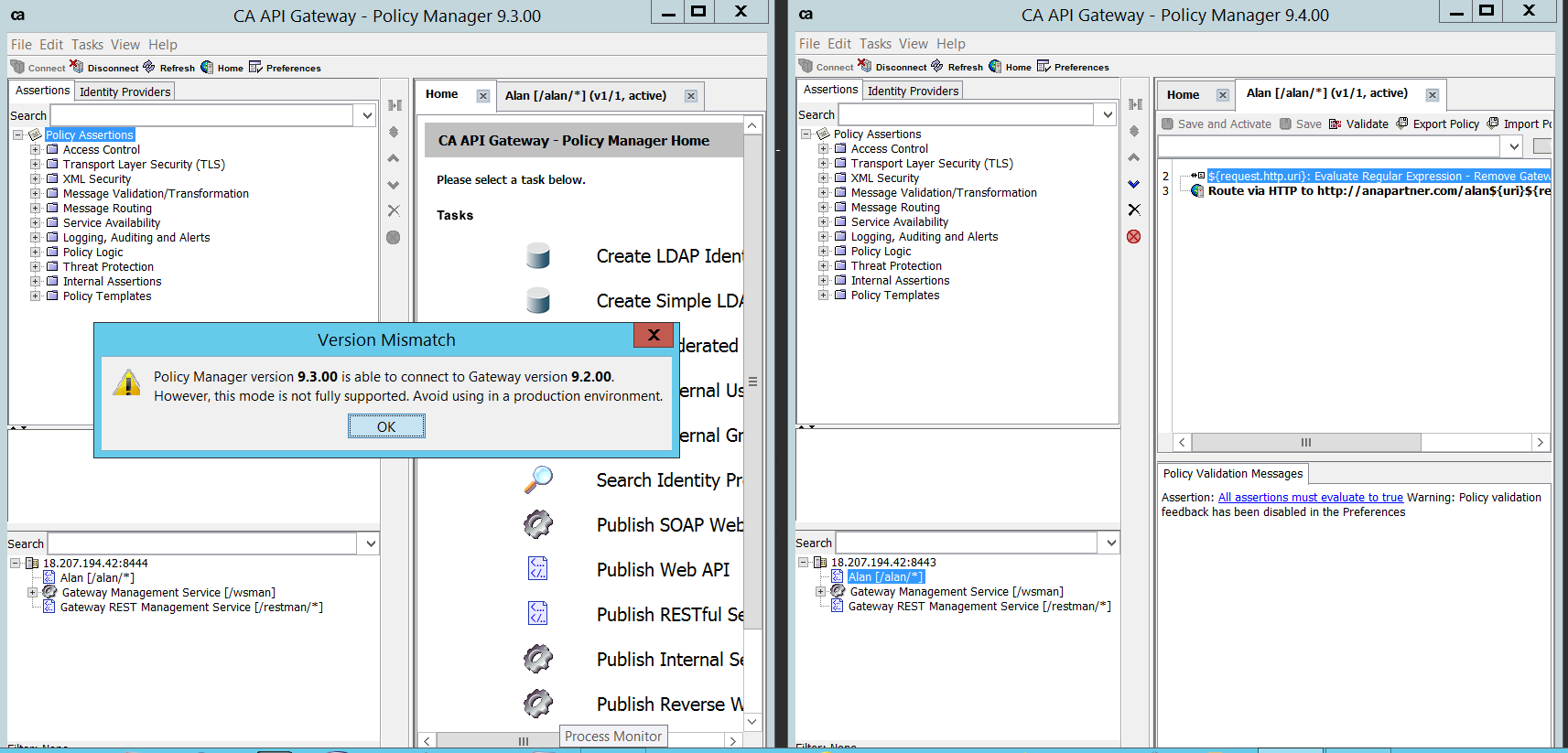

While assisting a site with their upgrade process from CA API Gateway 9.2 (docker) to the latest CA API Gateway 9.4 image, we needed to clarify the steps. In this blog entry, we have capture our validation processes of the documented and undocumented features of API Gateway docker deployment ( https://hub.docker.com/r/caapim/gateway/ ), pedantic verbose steps to assist with training of staff resources; and enhanced the external checks for a DAR (disaster and recovery) scenario using docker & docker-compose tools.

Please use this lab to jump start your knowledge of the tools: ‘docker’, ‘docker-compose’ and the API Gateway. We have added many checks and the use of bash shell to view the contents of the API Gateway containers. If you have additional notes/tips, please leave a comment.

To lower business risk during this exercise, we made the follow decisions:

1) Avoid use of default naming conventions, to prevent accidental deletion of the supporting MySQL database for CA API Gateway. The default ‘docker-compose.yml’ was renamed as appropriate for each API Gateway version.

2) Instead of using different folders to host configuration files, we defined project names as part of the startup process for docker-compose.

3) Any docker container updates would reference the BASH shell directly instead of a soft-link, to avoid different behaviors between the API GW container and the MySQL container.

Challenges:

Challenge #1: Both the API Gateway 9.2 and 9.4 docker container have defects with regards to using the standardized ‘docker stop/start containerID‘ process. API Gateway 9.2 would not restart cleanly; and API Gateway 9.4 container would not update the embedded health check process, e.g. docker ps -a OR docker inspect containerID

Resolution #1: Both challenges were addressed in the enclosed testing scripts. Docker-compose is used exclusively for API Gateway 9.2 container, and touching an internal file in the API Gateway 9.4 container.

Challenge #2: The docker parameters between API Gateway 9.2 and API Gateway 9.4 had changed.

Resolution #2: Identify the missing parameters with ‘docker logs containerID’ and review of the embedded deployment script of ‘entrypoint.sh’

Infrastructure: Seven (7) files were used for this lab on CentOS 7.x (/opt/docker/api)

ssg_license.xml (required from Broadcom/CA Sales Team – ask for 90 day trial if a current one is not available)
docker-compose-ssg94.yml (the primary install configuration file for API GW 9.4)
docker-compose-ssg92.yml (the primary install configuration file for API GW 9.2)
docker-compose-ssg94-join-db.xml (the restart configuration file – use as needed)
docker-compose-ssg92-join-db.xml (the restart configuration file – use as needed)
01_create_both_ssg92_and_ssg94_docker_deployments.sh (The installation of ‘docker’ and ‘docker-compose’ with the deployment of API GW 9.2 [with MySQL 5.5] and API GW 9.4 [with MySQL 5.7] ; with some additional updates)
02_backup_and_migrate_mysql_ssg_data_ from_ssg92_to_ssg94_db.sh (The export/import process from API GW 9.2 to API GW 9.4 and some additional checks)

Example of the seven (7) lab files’ contents:

ssg_license.xml ( a view of the header only )

<?xml version="1.0" encoding="UTF-8"?>
<license Id="5774266080443298199" xmlns="http://l7tech.com/license">
    <description>LIC-PRODUCTION</description>
    <licenseAttributes/>
    <valid>2018-12-10T19:32:31.000Z</valid>
    <expires>2019-12-11T19:32:31.000Z</expires>
    <host name=""/>
    <ip address=""/>
    <product name="Layer 7 SecureSpan Suite">
        <version major="9" minor=""/>
        <featureset name="set:Profile:EnterpriseGateway"/>
    </product>

2. docker-compose-ssg94.yml

version: "2.2"
services:
    ssg94:
      container_name: ssg94
      image: caapim/gateway:latest
      mem_limit: 4g
      volumes:
         - /opt/docker/api/ssg_license.xml:/opt/SecureSpan/Gateway/node/default/etc/bootstrap/license/license.xml
      expose:
      - "8777"
      - "2142"
      ports:
        - "8443:8443"
        - "9443:9443"
      environment:
        ACCEPT_LICENSE: "true"
        SSG_CLUSTER_COMMAND: "create"
        SSG_CLUSTER_HOST: "localhost"
        SSG_CLUSTER_PASSWORD: "7layer"
        SSG_DATABASE_TYPE: "mysql"
        SSG_DATABASE_HOST: "mysql57"
        SSG_DATABASE_PORT: "3306"
        SSG_DATABASE_NAME: "ssg"
        SSG_DATABASE_USER: "gateway"
        SSG_DATABASE_PASSWORD: "7layer"
        SSG_DATABASE_JDBC_URL: "jdbc:mysql://mysql57:3306/ssg?useSSL=false"
        SSG_DATABASE_WAIT_TIMEOUT: "120"
        SSG_DATABASE_ADMIN_USER: "root"
        SSG_DATABASE_ADMIN_PASS: "7layer"
        SSG_ADMIN_USERNAME: "pmadmin"
        SSG_ADMIN_PASSWORD: "7layer"
        SSG_INTERNAL_SERVICES: "restman wsman"
        EXTRA_JAVA_ARGS: "-Dcom.l7tech.bootstrap.env.license.enable=false -Dcom.l7tech.bootstrap.autoTrustSslKey=trustAnchor,TrustedFor.SSL,TrustedFor.SAML_ISSUER -Dcom.l7tech.server.transport.jms.topicMasterOnly=false  -Dcom.l7tech.service.metrics.enabled=false -Dcom.l7tech.server.disableFileLogsinks=false "
      links:
        - mysql57
    mysql57:
      container_name: ssg94_mysql57
      image: mysql:5.7
      restart: always
      mem_limit: 2g
      ports:
       - "3306:3306"
      environment:
         - MYSQL_ROOT_PASSWORD=7layer
         - MYSQL_USER=gateway
         - MYSQL_PASSWORD=7layer
         - MYSQL_DATABASE=ssg

3. docker-compose-ssg92.yml

version: "2.2"
services:
    ssg92:
      container_name: ssg92
      image: caapim/gateway:9.2.00-9087_CR10
      mem_limit: 4g
      expose:
      - "8778"
      - "2143"
      ports:
        - "8444:8443"
        - "9444:9443"
      environment:
        SKIP_CONFIG_SERVER_CHECK: "true"
        ACCEPT_LICENSE: "true"
        SSG_CLUSTER_COMMAND: "create"
        SSG_CLUSTER_HOST: "localhost"
        SSG_CLUSTER_PASSWORD: "7layer"
        SSG_DATABASE_TYPE: "mysql"
        SSG_DATABASE_HOST: "mysql55"
        SSG_DATABASE_PORT: "3306"
        SSG_DATABASE_NAME: "ssg"
        SSG_DATABASE_USER: "root"
        SSG_DATABASE_PASSWORD: "7layer"
        SSG_DATABASE_JDBC_URL: "jdbc:mysql://mysql55:3306/ssg?useSSL=false"
        SSG_DATABASE_WAIT_TIMEOUT: "120"
        SSG_DATABASE_ADMIN_USER: "root"
        SSG_DATABASE_ADMIN_PASS: "7layer"
        SSG_ADMIN_USERNAME: "pmadmin"
        SSG_ADMIN_PASSWORD: "7layer"
        SSG_ADMIN_USER: "pmadmin"
        SSG_ADMIN_PASS: "7layer"
        SSG_INTERNAL_SERVICES: "restman wsman"
        EXTRA_JAVA_ARGS: "-Dcom.l7tech.bootstrap.env.license.enable=true -Dcom.l7tech.bootstrap.autoTrustSslKey=trustAnchor,TrustedFor.SSL,TrustedFor.SAML_ISSUER -Dcom.l7tech.server.transport.jms.topicMasterOnly=false  -Dcom.l7tech.service.metrics.enabled=false "
        SSG_LICENSE: "$SSG_LICENSE_ENV"
      links:
        - mysql55
    mysql55:
      container_name: ssg92_mysql55
      image: mysql:5.5
      restart: always
      mem_limit: 2g
      ports:
      - "3307:3306"
      environment:
        - MYSQL_ROOT_PASSWORD=7layer

4. docker-compose-ssg94-join-db.yml

version: "2.2"
services:
    ssg94:
      container_name: ssg94
      image: caapim/gateway:latest
      mem_limit: 4g
      volumes:
         - /opt/docker/api/ssg_license.xml:/opt/SecureSpan/Gateway/node/default/etc/bootstrap/license/license.xml
      expose:
      - "8777"
      - "2142"
      ports:
        - "8443:8443"
        - "9443:9443"
      environment:
        ACCEPT_LICENSE: "true"
        #SSG_CLUSTER_COMMAND: "create"
        SSG_CLUSTER_COMMAND: "join"
        SSG_CLUSTER_HOST: "localhost"
        SSG_CLUSTER_PASSWORD: "7layer"
        SSG_DATABASE_TYPE: "mysql"
        SSG_DATABASE_HOST: "mysql57"
        SSG_DATABASE_PORT: "3306"
        SSG_DATABASE_NAME: "ssg"
        SSG_DATABASE_USER: "gateway"
        SSG_DATABASE_PASSWORD: "7layer"
        SSG_DATABASE_JDBC_URL: "jdbc:mysql://mysql57:3306/ssg?useSSL=false"
        SSG_DATABASE_WAIT_TIMEOUT: "120"
        SSG_DATABASE_ADMIN_USER: "root"
        SSG_DATABASE_ADMIN_PASS: "7layer"
        SSG_ADMIN_USERNAME: "pmadmin"
        SSG_ADMIN_PASSWORD: "7layer"
        SSG_INTERNAL_SERVICES: "restman wsman"
        EXTRA_JAVA_ARGS: "-Dcom.l7tech.bootstrap.env.license.enable=false -Dcom.l7tech.bootstrap.autoTrustSslKey=trustAnchor,TrustedFor.SSL,TrustedFor.SAML_ISSUER -Dcom.l7tech.server.transport.jms.topicMasterOnly=false  -Dcom.l7tech.service.metrics.enabled=false -Dcom.l7tech.server.disableFileLogsinks=false "
      links:
        - mysql57
    mysql57:
      container_name: ssg94_mysql57
      image: mysql:5.7
      restart: always
      mem_limit: 2g
      ports:
       - "3306:3306"
      environment:
         - MYSQL_ROOT_PASSWORD=7layer
         - MYSQL_USER=gateway
         - MYSQL_PASSWORD=7layer
         - MYSQL_DATABASE=ssg

5. docker-compose-ssg92-join-db.yml

version: "2.2"
services:
    ssg92:
      container_name: ssg92
      image: caapim/gateway:9.2.00-9087_CR10
      mem_limit: 4g
      expose:
      - "8778"
      - "2143"
      ports:
        - "8444:8443"
        - "9444:9443"
      environment:
        SKIP_CONFIG_SERVER_CHECK: "true"
        ACCEPT_LICENSE: "true"
        SSG_CLUSTER_COMMAND: "join"
        SSG_CLUSTER_HOST: "localhost"
        SSG_CLUSTER_PASSWORD: "7layer"
        SSG_DATABASE_TYPE: "mysql"
        SSG_DATABASE_HOST: "mysql55"
        SSG_DATABASE_PORT: "3306"
        SSG_DATABASE_NAME: "ssg"
        SSG_DATABASE_USER: "root"
        SSG_DATABASE_PASSWORD: "7layer"
        SSG_DATABASE_JDBC_URL: "jdbc:mysql://mysql55:3306/ssg?useSSL=false"
        SSG_DATABASE_WAIT_TIMEOUT: "120"
        SSG_DATABASE_ADMIN_USER: "root"
        SSG_DATABASE_ADMIN_PASS: "7layer"
        SSG_ADMIN_USERNAME: "pmadmin"
        SSG_ADMIN_PASSWORD: "7layer"
        SSG_ADMIN_USER: "pmadmin"
        SSG_ADMIN_PASS: "7layer"
        SSG_INTERNAL_SERVICES: "restman wsman"
        EXTRA_JAVA_ARGS: "-Dcom.l7tech.bootstrap.env.license.enable=true -Dcom.l7tech.bootstrap.autoTrustSslKey=trustAnchor,TrustedFor.SSL,TrustedFor.SAML_ISSUER -Dcom.l7tech.server.transport.jms.topicMasterOnly=false  -Dcom.l7tech.service.metrics.enabled=false "
        SSG_LICENSE: "$SSG_LICENSE_ENV"
      links:
        - mysql55
    mysql55:
      container_name: ssg92_mysql55
      image: mysql:5.5
      restart: always
      mem_limit: 2g
      ports:
      - "3307:3306"
      environment:
        - MYSQL_ROOT_PASSWORD=7layer

6. 01_create_both_ssg92_and_ssg94_docker_deployments.sh

#!/bin/bash
##################################################################
#
# Script to validate upgrade process from CA API GW 9.2 to 9.4 with docker
#  - Avoid using default of 'docker-compose.yml'
#  - Define different project names for API GW 9.2 and 9.4 to avoid conflict
#  - Explictly use bash shell  /bin/bash  instead of soft-link
#
# 1. Use docker with docker-compose to download & start
#      CA API GW 9.4 (with MySQL 5.7) &
#      CA API GW 9.2 (with MySQL 5.5)
#
# 2. Configure CA API GW 9.4 with TCP 8443/9443
#              CA API GW 9.2 with TCP 8444/9444 (redirect to 8443/9443)
#
# 3. Configure MySQL 5.7 to be externally exposed on TCP 3306
#              MySQL 5.5 to be externally exposed on TCP 3307
#  - Adjust 'grant' token on MySQL configuration file for root account
#
# 4. Validate authentication credentials to the above web services with curl
#
#
# 5. Add network modules via yum to API GW 9.4 container
#   - To assist with troubleshooting / debug exercises
#
# 6. Enable system to use API GW GUI to perform final validation
#   - Appears to be an issue to use browers to access the API GW UI TCP 8443/8444
#
#
# Alan Baugher, ANA, 10/19
#
##################################################################


echo ""
echo ""
echo "################################"
echo "Install docker and docker-compose via yum if missing"
echo "Watch for message:  Nothing to do "
echo ""
echo "yum -y install docker docker-compose "
yum -y install docker docker-compose
echo "################################"
echo ""


echo "################################"
echo "Shut down any prior docker container running for API GW 9.2 and 9.4"
cd /opt/docker/api
pwd
echo "Issue this command if script fails:  docker stop \$(docker ps -a -q)  && docker rm \$(docker ps -a -q)   "
echo "################################"
echo ""


echo "################################"
export SSG_LICENSE_ENV=$(cat ./ssg_license.xml | gzip | base64 --wrap=0)
echo "Execute  'docker-compose down'  to ensure no prior data or containers for API GW 9.4"
docker-compose -p ssg94 -f /opt/docker/api/docker-compose-ssg94.yml down
echo "################################"
echo "Execute  'docker-compose down'  to ensure no prior data or containers for API GW 9.2"
docker-compose -p ssg92 -f /opt/docker/api/docker-compose-ssg92.yml down
echo "################################"
echo ""


echo "################################"
echo "Execute  'docker ps -a'   to validate no running docker containers for API GW 9.2 nor 9.4"
docker ps --format "table {{.ID}}\t{{.Names}}\t{{.RunningFor}}\t{{.Status}}\t{{.Ports}}"
echo "################################"
echo ""


echo "################################"
echo "Change folder to execute docker-compose script for API GW 9.4 with MySql 5.7 with TCP 8443/9443"
echo "Execute  'docker-compose up -d'  to start docker containers for API GW 9.4 with MySql 5.7 with TCP 8443/9443"
docker-compose -p ssg94 -f /opt/docker/api/docker-compose-ssg94.yml up -d
echo "################################"
echo "Change folder to execute docker-compose script for API GW 9.2 with MySql 5.5 with TCP 8444/9444"
echo "Execute  'docker-compose up -d'  to start docker containers for API GW 9.2 with MySql 5.5 with TCP 8444/9444"
docker-compose -p ssg92 -f /opt/docker/api/docker-compose-ssg92.yml up -d
echo "################################"
echo ""


echo "################################"
echo "Backup current API GW 9.4 running container for future analysis"
echo "docker export ssg94 > ssg94.export.`/bin/date --utc +%Y%m%d%H%M%S.0Z`.tar "
docker export ssg94 > ssg94.export.`/bin/date --utc +%Y%m%d%H%M%S.0Z`.tar
echo "################################"
echo ""


echo "################################"
echo "Update API GW 9.4 running container with additional supporting tools with yum"
echo "docker exec -it -u root -e TERM=xterm ssg94 /bin/sh -c \"yum install -y -q net-tools iproute unzip vi --nogpgcheck\" "
docker exec -it -u root -e TERM=xterm ssg94 /bin/sh -c "yum install -y -q net-tools iproute unzip vi --nogpgcheck "
echo "Export API GW 9.4 running container after supporting tools are added"
echo "docker export ssg94 > ssg94.export.tools.`/bin/date --utc +%Y%m%d%H%M%S.0Z`.tar "
docker export ssg94 > ssg94.export.tools.`/bin/date --utc +%Y%m%d%H%M%S.0Z`.tar
echo "################################"
echo ""


echo "################################"
echo "Validate network ports are exposed for API GW Manager UI "
netstat -anpeW | grep -e docker -e "Local" | grep -e "tcp" -e "Local"
echo "################################"
echo ""

echo "################################"
echo "Sleep 70 seconds for both API GW to be ready"
echo "################################"
sleep 70
echo ""


echo ""
echo "################################"
echo "Extra:  Open TCP 3306 for mysql remote access "
docker exec -it -u root -e TERM=xterm  `docker ps -a | grep mysql:5.7 | awk '{print $1}'` /bin/bash -c "echo -e '\0041includedir /etc/mysql/conf.d/\n\0041includedir /etc/mysql/mysql.conf.d/\n[mysqld]\nskip-grant-tables' > /etc/mysql/mysql.cnf && cat /etc/mysql/mysql.cnf "
#docker exec -it -u root -e TERM=xterm  `docker ps -a | grep mysql:5.7 | awk '{print $1}'` /bin/bash -c "/etc/init.d/mysql restart"
#docker exec -it -u root -e TERM=xterm  `docker ps -a | grep mysql:5.7 | awk '{print $1}'` /bin/bash -c "/etc/init.d/mysql status && echo -n"
echo "################################"
docker restart ssg94_mysql57
echo ""



echo "################################"
echo "Execute  'docker ps -a'   to validate running docker containers for API GW 9.2 and 9.4 with their correct ports"
docker ps --format "table {{.ID}}\t{{.Names}}\t{{.RunningFor}}\t{{.Status}}\t{{.Ports}}"
echo "################################"
echo ""


echo "################################"
echo "Test authentication with the SSG backup URL for API 9.2 TCP 8444 - should see six (6) lines"
echo "curl -s --insecure  -u pmadmin:7layer  https://$(hostname -s):8444/ssg/backup | grep -e 'title' -e 'Gateway node' -e 'input' -e 'form action' "
echo "#########           ############"
curl -s --insecure  -u pmadmin:7layer  https://$(hostname -s):8444/ssg/backup | grep -e "title" -e "Gateway node" -e "input" -e "form action"
echo "################################"
echo ""


echo "################################"
echo "Test authentication with the SSG backup URL for API 9.4 TCP 8443 - should see six (6) lines"
echo "curl -s --insecure  -u pmadmin:7layer  https://$(hostname -s):8443/ssg/backup | grep -e 'title' -e 'Gateway node' -e 'input' -e 'form action' "
echo "#########           ############"
curl -s --insecure  -u pmadmin:7layer  https://$(hostname -s):8443/ssg/backup | grep -e "title" -e "Gateway node" -e "input" -e "form action"
echo "################################"
echo ""


echo "################################"
echo "Next Steps:"
echo "       Open the API GW UI for 9.2 and create a new entry in the lower left panel"
echo ""
echo "Example: "
echo "       Right click on hostname entry and select 'Publish RESTful Service Proxy with WADL' "
echo "       Select Manual Entry, then click Next"
echo "       Enter data for two (2) fields:"
echo "                  Service Name:  Alan "
echo "                  Resource Base URL:  http://www.anapartner.com/alan "
echo "       Then select Finish Button "
echo "################################"
echo ""

7. 02_backup_and_migrate_mysql_ssg_data_from_ssg92_to_ssg94_db.sh

#!/bin/bash
#######################################################################
#
# Script to validate upgrade process from CA API 9.2 to 9.4 with docker
#  - Avoid using default of 'docker-compose.yml'
#  - Define different project names for API GW 9.2 and 9.4 to avoid conflict
#  - Explictly use bash shell  /bin/bash  instead of soft-link /bin/sh
#
# 1. Stop docker containers for CA API GW 9.2 & 9.4 (leave mysql containers running)
#    - To prevent any updates to mysql db during migration
#
# 2. Use mysqldump command to export CA API 9.2 MySQL 5.5 ssg database with stored procedures (aka routines)
#   - Review excluding the audit tables to avoid carrying over excessive data
#
# 3. Use mysql command to import sql file to CA API 9.4 MySQL 5.7 ssg database
#   - Review if dropping / recreate the ssg database will avoid any install issues
#   - Keep eye on table cluster_info {as this has the Gateway1 defination with the host IP address}
#
# 4. Restart CA API GW 9.2 & 9.4 containers
#
#    - Challenge 1: CA API GW 9.2 docker image has issue with docker stop/start process
#    the reference /root/entrypoint.sh will loop with creation of a license folder
#    - Addressed with custom docker-compose file to recreate image to join existing MySQL 5.5 container
#
#    - Challenge 2: CA API GW 9.4 docker image has issue with docker stop/start process
#    The new heathcheck.sh process calls a base.sh script that compare the date-time stamp for two files
#    , the datestamp for one file is not updated correctly upon docker start process.
#    - Addressed with custom docker bash script to "touch" the primary file to allow date stamp to be updated.  Validate with: docker logs ssg94
#      WARNING 1      com.l7tech.server.boot.GatewayBoot: Unable to touch /opt/SecureSpan/Gateway/node/default/var/started:
#                  /opt/SecureSpan/Gateway/node/default/var/started (Permission denied)
#
#    - Challenge 3: CA API GW 9.4 docker image appears to have similar issue for hazelcast startup
#    The container may hold for 300 seconds due to hazelcast configuration not completing correctly
#     SEVERE  1      com.hazelcast.instance.Node: [172.17.0.3]:8777 [gateway] [3.10.2] Could not join cluster in 300000 ms. Shutting down now!
#     Unable to start the server: Error starting server : Lifecycle error: Could not initialize Hazelcast cluster
#     WARNING 107    com.hazelcast.cluster.impl.TcpIpJoiner: [172.17.0.3]:8777 [gateway] [3.10.2] Error during join check!
#    - Addessed with different project names to avoid conflict between API GW 9.2 broadcast to API GW 9.4
#
#    - Challenge 4: CA API GW 9.2 appears to be stuck in a while loop for /opt/docker/entrypoint.sh
#      apim-provisioning: INFO: waiting for the shutdown file at "/userdata/shutdown" to be created
#    - Addressed:  Does not seem to have impact with current testing.  Ignore.  Validate with:  docker logs ssg92
#
# 5. Important Note: Ensure that the SSG_CLUSTER_HOST and SSG_CLUSTER_PASSWORD values for CA API GW 9.4 docker-compose file
#    match those set in the configured MySQL database.
#    After CA API GW 9.4 container connects to the existing Gateway database, the Container Gateway will automatically upgrades
#    the ssg database if the ssg database version is lower than the version of the Container Gateway.
#    - Ensure the jdbc hostname
#
#    - Ref:  https://techdocs.broadcom.com/content/broadcom/techdocs/us/en/ca-enterprise-software/layer7-api-management/api-gateway/9-4/other-gateway-form-factors/using-the-container-gateway/getting-started-with-the-container-gateway/connect-the-container-gateway-to-an-existing-mysql-database.html
#
#
# Alan Baugher, ANA, 10/19
#
#######################################################################

echo ""
echo "####################################"
echo "Early check: Address a file permission issue with the API GW 9.4 container"
echo "docker exec -it -u root -e TERM=xterm `docker ps -a | grep caapim/gateway:latest | awk '{print $1}'` /bin/bash -c 'chmod 666 /opt/SecureSpan/Gateway/node/default/var/started' "
docker exec -it -u root -e TERM=xterm `docker ps -a | grep caapim/gateway:latest | awk '{print $1}'` /bin/bash -c "chmod 666 /opt/SecureSpan/Gateway/node/default/var/started"
echo "May validate issue with:  docker logs ssg94 "
echo "####################################"


echo ""
echo "####################################"
echo "Temporarily shutdown the API GW containers for 9.2 and 9.4 to avoid any updates to the mysql db during export & import"
echo "docker stop ssg92 ssg94 "
docker stop ssg92 ssg94
echo "####################################"
echo ""


echo "####################################"
echo "Validate API GW container are down and the MySQL db containers are up and working"
echo "Pause for 5 seconds:  sleep 5"
sleep 5
docker ps --format "table {{.ID}}\t{{.Names}}\t{{.RunningFor}}\t{{.Status}}\t{{.Ports}}"
echo "####################################"
echo ""


echo "####################################"
echo "Export the API GW 9.2 MySQL 5.5 ssg db with stored procedures (aka routines)"
echo "time docker exec -i `docker ps -a | grep mysql:5.5 | awk '{print $1}'` mysqldump -u root --password=7layer ssg  --routines >  ssg92.backup_with_routines.sql  2> /dev/null "
time docker exec -i `docker ps -a | grep mysql:5.5 | awk '{print $1}'` mysqldump -u root --password=7layer ssg  --routines >  ssg92.backup_with_routines.sql  2> /dev/null
echo "View the size of the MySQL 5.5. ssg db for API GW 9.2"
ls -lart | grep ssg92.backup_with_routines.sql
echo "####################################"
echo ""


echo "####################################"
echo "Export the API GW 9.4 MySQL 5.7 ssg db with stored procedures (aka routines) as a 'before' reference file"
echo "time docker exec -i `docker ps -a | grep mysql:5.7 | awk '{print $1}'` /usr/bin/mysqldump -u root --password=7layer ssg  --routines >  ssg94.before.backup_with_routines.sql  2> /dev/null "
time docker exec -i `docker ps -a | grep mysql:5.7 | awk '{print $1}'` /usr/bin/mysqldump -u root --password=7layer ssg  --routines >  ssg94.before.backup_with_routines.sql  2> /dev/null
echo "View the size of the MySQL 5.7. ssg db for API GW 9.4 as the 'before' reference file"
ls -lart | grep ssg94.before.backup_with_routines.sql
echo "####################################"
echo ""


echo "####################################"
echo "Import the MySQL 5.5 ssg db with stored procedures (aka routines) into MySQL 5.7 for API GW 9.4"
echo "time docker exec -i `docker ps -a | grep mysql:5.7 | awk '{print $1}'` /usr/bin/mysql -u root --password=7layer ssg    < ssg92.backup_with_routines.sql 2> /dev/null "
time docker exec -i `docker ps -a | grep mysql:5.7 | awk '{print $1}'` /usr/bin/mysql -u root --password=7layer ssg    < ssg92.backup_with_routines.sql 2> /dev/null
echo "####################################"
echo ""


echo "####################################"
echo "Export the API GW 9.4 MySQL 5.7 ssg db wht stored procedures (aka routines) as a 'after' import reference file"
echo "time docker exec -i `docker ps -a | grep mysql:5.7 | awk '{print $1}'` /usr/bin/mysqldump -u root --password=7layer ssg  --routines >  ssg94.after.backup_with_routines.sql 2> /dev/null "
time docker exec -i `docker ps -a | grep mysql:5.7 | awk '{print $1}'` /usr/bin/mysqldump -u root --password=7layer ssg  --routines >  ssg94.after.backup_with_routines.sql 2> /dev/null
echo "View the size of the MySQL 5.7. ssg db for API GW 9.4 as the 'after' reference file"
ls -lart | grep ssg94.after.backup_with_routines.sql
echo "####################################"
echo ""


echo "####################################"
echo "Restart the API GW containers for 9.2 and 9.4 "
# Note: Restart of the ssg94 container will 'auto' upgrade the ssg database to 9.4 tags
echo "docker restart ssg94 "
docker restart ssg94
#docker rm ssg94
#docker-compose -p ssg94 -f /opt/docker/api/docker-compose-ssg94-join-db.yml up -d
echo "####################################"
# Note:  API GW 9.2 docker image was not designed for stop/start correctly; rm then redeploy
export SSG_LICENSE_ENV=$(cat ssg_license.xml | gzip | base64 --wrap=0)
echo "Remove the API GW 9.2 container via:  docker rm ssg92"
docker rm ssg92
echo "Redeploy the API GW 9.2 container "
echo "docker-compose -p ssg92 -f /opt/docker/api/docker-compose-ssg92-join-db.yml up -d "
docker-compose -p ssg92 -f /opt/docker/api/docker-compose-ssg92-join-db.yml up -d
echo "####################################"
echo ""



echo "####################################"
echo "Validate API GW container are up and the mysql db containers are working"
docker ps --format "table {{.ID}}\t{{.Names}}\t{{.RunningFor}}\t{{.Status}}\t{{.Ports}}"
echo "####################################"
echo ""


echo "####################################"
echo "Export the API GW 9.4 MySQL 5.7 ssg db after import & after the 'auto' upgrade as an 'after' auto upgrade reference file"
docker stop ssg94
echo "time docker exec -i `docker ps -a | grep mysql:5.7 | awk '{print $1}'` /usr/bin/mysqldump -u root --password=7layer ssg  --routines >  ssg94.auto.after.backup_with_routines.sql 2> /dev/null "
time docker exec -i `docker ps -a | grep mysql:5.7 | awk '{print $1}'` /usr/bin/mysqldump -u root --password=7layer ssg  --routines >  ssg94.auto.after.backup_with_routines.sql 2> /dev/null
echo "View all the exported MySQL files to compare process flow"
ls -lart ssg*.sql
docker start ssg94
echo "View the auto upgrade from version 9.2 to version 9.4 with a delta compare of the exported sql files"
echo "diff ssg94.after.backup_with_routines.sql  ssg94.before.backup_with_routines.sql  | grep -i \"INSERT INTO .ssg_version.\" "
diff ssg94.after.backup_with_routines.sql  ssg94.before.backup_with_routines.sql  | grep -i "INSERT INTO .ssg_version."
echo "####################################"
echo ""


echo "####################################"
echo "Execute  'docker ps -a'   to validate running docker containers for API GW 9.4 and 9.2"
echo "docker ps --format \"table {{.ID}}\t{{.Names}}\t{{.RunningFor}}\t{{.Status}}\t{{.Ports}}\" "
docker ps --format "table {{.ID}}\t{{.Names}}\t{{.RunningFor}}\t{{.Status}}\t{{.Ports}}"
echo "####################################"
echo ""


echo "####################################"
echo "Show current API GW 9.4 MySQL 5.7 databases"
echo "Validate that 'ssg' database exists "
echo "docker exec -it -u root -e TERM=xterm  `docker ps -a | grep mysql:5.7 | awk '{print $1}'`  mysql --user=root --password=7layer  -e \"show databases;\" "
docker exec -it -u root -e TERM=xterm  `docker ps -a | grep mysql:5.7 | awk '{print $1}'`  mysql --user=root --password=7layer  -e "show databases;"
echo "####################################"
echo ""


echo "####################################"
echo "Review for any delta of the MySQL ssg database after import"
echo "docker exec -it -u root -e TERM=xterm `docker ps -a | grep mysql:5.5 | awk '{print $1}'`  mysql --user=root --password=7layer  ssg -e \"show tables;\" "
docker exec -it -u root -e TERM=xterm `docker ps -a | grep mysql:5.5 | awk '{print $1}'`  mysql --user=root --password=7layer  ssg -e "show tables;" > ssg92.tables.txt
echo "docker exec -it -u root -e TERM=xterm `docker ps -a | grep mysql:5.7 | awk '{print $1}'`  mysql --user=root --password=7layer  ssg -e \"show tables;\" "
docker exec -it -u root -e TERM=xterm `docker ps -a | grep mysql:5.7 | awk '{print $1}'`  mysql --user=root --password=7layer  ssg -e "show tables;" > ssg94.tables.txt
echo "Observer for any delta from the below command"
echo "diff ssg92.tables.txt ssg94.tables.txt"
diff ssg92.tables.txt ssg94.tables.txt
echo "####################################"
echo ""


echo "####################################"
echo "Show current API GW 9.4 admin user in the MySQL 5.7 ssg database"
echo "docker exec -it -u root -e TERM=xterm  `docker ps -a | grep mysql:5.7 | awk '{print $1}'`  mysql --user=root --password=7layer ssg -e \"SELECT name,login,password,enabled,expiration,password_expiry FROM internal_user;\" "
docker exec -it -u root -e TERM=xterm  `docker ps -a | grep mysql:5.7 | awk '{print $1}'`  mysql --user=root --password=7layer ssg -e "SELECT name,login,password,enabled,expiration,password_expiry FROM internal_user;"
echo "####################################"
echo ""


echo "####################################"
echo "Show current API GW 9.4 admin user in the intermediate configuration file on the AIP GW 9.4 container"
echo "docker exec -it -u root -e TERM=xterm ssg94 /bin/bash -c \"grep -i -e l7.login -e l7.password /opt/SecureSpan/Gateway/node/default/etc/bootstrap/bundle/001_update_admin_user.xml.req.bundle\" "
docker exec -it -u root -e TERM=xterm ssg94 /bin/bash -c "grep -i -e l7.login -e l7.password /opt/SecureSpan/Gateway/node/default/etc/bootstrap/bundle/001_update_admin_user.xml.req.bundle"
echo "####################################"
echo ""


echo "####################################"
echo "Show all 'new' files created or linked in API GW 9.4 container with mtime of 1 day. Excluding lock (LCK) files"
echo "docker exec -it -u root -e TERM=xterm `docker ps -a | grep caapim/gateway:latest | awk '{print $1}'` /bin/bash -c \"find /opt -type f -mtime -1 -ls | grep -i -v -e '.LCK'\" "
docker exec -it -u root -e TERM=xterm `docker ps -a | grep caapim/gateway:latest | awk '{print $1}'` /bin/bash -c "find /opt -type f -mtime -1 -ls | grep -i -v -e '.LCK'"
echo "####################################"
echo ""


echo "####################################"
echo " View the license.xml file that was copied to the API GW 9.4 container bootstrap folder before copied to the MySQL 5.7 ssg db table "
echo "docker exec -it -u root -e TERM=xterm `docker ps -a | grep caapim/gateway:latest | awk '{print $1}'` /bin/bash -c \"ls -lart  /opt/SecureSpan/Gateway/node/default/etc/bootstrap/license \" "
docker exec -it -u root -e TERM=xterm `docker ps -a | grep caapim/gateway:latest | awk '{print $1}'` /bin/bash -c "ls -lart  /opt/SecureSpan/Gateway/node/default/etc/bootstrap/license "
echo "####################################"
echo ""


echo "####################################"
echo "View logon count for the API GW 9.4 admin user via MySQL 5.7 ssg db"
echo "docker exec -it -u root -e TERM=xterm `docker ps -a | grep mysql:5.7 | awk '{print $1}'`  mysql --user=gateway --password=7layer ssg -e \"select hex(goid), version, hex(provider_goid), login, fail_count, last_attempted, last_activity, state from logon_info;\" "
docker exec -it -u root -e TERM=xterm `docker ps -a | grep mysql:5.7 | awk '{print $1}'`  mysql --user=gateway --password=7layer ssg -e "select hex(goid), version, hex(provider_goid), login, fail_count, last_attempted, last_activity, state from logon_info;"
echo "####################################"
echo ""


echo "####################################"
echo "View the API GW 9.4 MySQL 5.7 mysql.user table"
### docker logs `docker ps -a | grep mysql:5.7 | awk '{print $1}'`  2>&1 | grep  "GENERATED ROOT PASSWORD"
echo "docker exec -it -u root -e TERM=xterm `docker ps -a | grep mysql:5.7 | awk '{print $1}'`  mysql --user=root --password=7layer  ssg -e \"SELECT User,account_locked,password_expired,password_last_changed,authentication_string FROM mysql.user;\" "
docker exec -it -u root -e TERM=xterm `docker ps -a | grep mysql:5.7 | awk '{print $1}'`  mysql --user=root --password=7layer  ssg -e "SELECT User,account_locked,password_expired,password_last_changed,authentication_string FROM mysql.user;"
echo "####################################"
echo ""


echo "####################################"
echo "To remove any locked account (including pmadmin SSG Admin User ID) from the MySQL 5.7 ssg logon_info table  {or any account}"
echo "docker exec -it -u root -e TERM=xterm  `docker ps -a | grep mysql:5.7 | awk '{print $1}'`  mysql --user=root --password=7layer ssg -e \"delete from logon_info where login ='pmadmin';\" "
echo "docker exec -it -u root -e TERM=xterm  `docker ps -a | grep mysql:5.7 | awk '{print $1}'`  mysql --user=root --password=7layer ssg -e \"truncate logon_info;\"  "
echo "####################################"
echo ""


echo "####################################"
echo "To change root password for MySQL 5.7 mysql.user db"
echo "docker exec -it -u root -e TERM=xterm `docker ps -a | grep mysql:5.7 | awk '{print $1}'`  mysql --user=root --password=OLD_PASSWORD -e  \"SET PASSWORD FOR 'root'@'localhost' = PASSWORD('7layer');\" "
echo "####################################"
echo ""


echo "####################################"
echo "Sleep 30 seconds to address restart health check time-stamp issue with API GW 9.4"
sleep 30
echo "####################################"
echo ""


echo "####################################"
echo "Address API GW 9.4 container health check upon stop/start or restart gap.  (base.sh script)"
echo "docker exec -it -u root -e TERM=XTERM `docker ps -a | grep caapim/gateway:latest | awk '{print $1}'` /bin/bash -c \"date +%s -r /opt/SecureSpan/Gateway/node/default/var/started  && date +%s -r /opt/SecureSpan/Gateway/node/default/var/preboot\" "
docker exec -it -u root -e TERM=XTERM `docker ps -a | grep caapim/gateway:latest | awk '{print $1}'` /bin/bash -c "date +%s -r /opt/SecureSpan/Gateway/node/default/var/started  && date +%s -r /opt/SecureSpan/Gateway/node/default/var/preboot"
echo "Touch to update date-time stamp for one file: /opt/SecureSpan/Gateway/node/default/var/started"
echo "docker exec -it -u root -e TERM=XTERM `docker ps -a | grep caapim/gateway:latest | awk '{print $1}'` /bin/bash -c \"touch /opt/SecureSpan/Gateway/node/default/var/started\" "
docker exec -it -u root -e TERM=XTERM `docker ps -a | grep caapim/gateway:latest | awk '{print $1}'` /bin/bash -c "touch /opt/SecureSpan/Gateway/node/default/var/started"
docker exec -it -u root -e TERM=XTERM `docker ps -a | grep caapim/gateway:latest | awk '{print $1}'` /bin/bash -c "date +%s -r /opt/SecureSpan/Gateway/node/default/var/started  && date +%s -r /opt/SecureSpan/Gateway/node/default/var/preboot"
echo "####################################"
echo ""


echo "####################################"
echo "Sleep 30 seconds to allow health check status to update for API GW 9.4"
echo "May also monitor health and overall status with:   docker inspect ssg94 "
sleep 30
echo "####################################"
echo ""


echo "####################################"
echo "Execute  'docker ps -a'   to validate running docker containers for API GW 9.4 and 9.2"
echo "docker ps --format \"table {{.ID}}\t{{.Names}}\t{{.RunningFor}}\t{{.Status}}\t{{.Ports}}\" "
docker ps --format "table {{.ID}}\t{{.Names}}\t{{.RunningFor}}\t{{.Status}}\t{{.Ports}}"
echo "####################################"
echo ""


echo "################################"
echo "Test authentication with the SSG backup URL for API 9.2 TCP 8444 - should see minimal of six (6) lines"
echo "curl -s --insecure  -u pmadmin:7layer  https://$(hostname -s):8444/ssg/backup | grep -e 'title' -e 'Gateway node' -e 'input' -e 'form action' "
echo "#########           ############"
curl -s --insecure  -u pmadmin:7layer  https://$(hostname -s):8444/ssg/backup | grep -e "title" -e "Gateway node" -e "input" -e "form action"
echo "################################"
echo ""


echo "################################"
echo "Test authentication with the SSG backup URL for API 9.4 TCP 8443 - should see minimal of six (6) lines"
echo "curl -s --insecure  -u pmadmin:7layer  https://$(hostname -s):8443/ssg/backup | grep -e 'title' -e 'Gateway node' -e 'input' -e 'form action' "
echo "#########           ############"
curl -s --insecure  -u pmadmin:7layer  https://$(hostname -s):8443/ssg/backup | grep -e "title" -e "Gateway node" -e "input" -e "form action"
echo "################################"
echo ""

api-gateway-92-to-94-upgrade-lab-2020.tar_Download

View of the API Gateway via the MS Windows API GW UI for both API GW 9.2 (using the 9.3 UI) and API 9.4 (using the 9.4 UI). The API GW Policies will be migrated from API 9.2 to API 9.4 via the export/import of MySQL ssg database. After import, the API GW 9.4 docker image will ‘auto’ upgrade the ssg database to the 9.4 version.

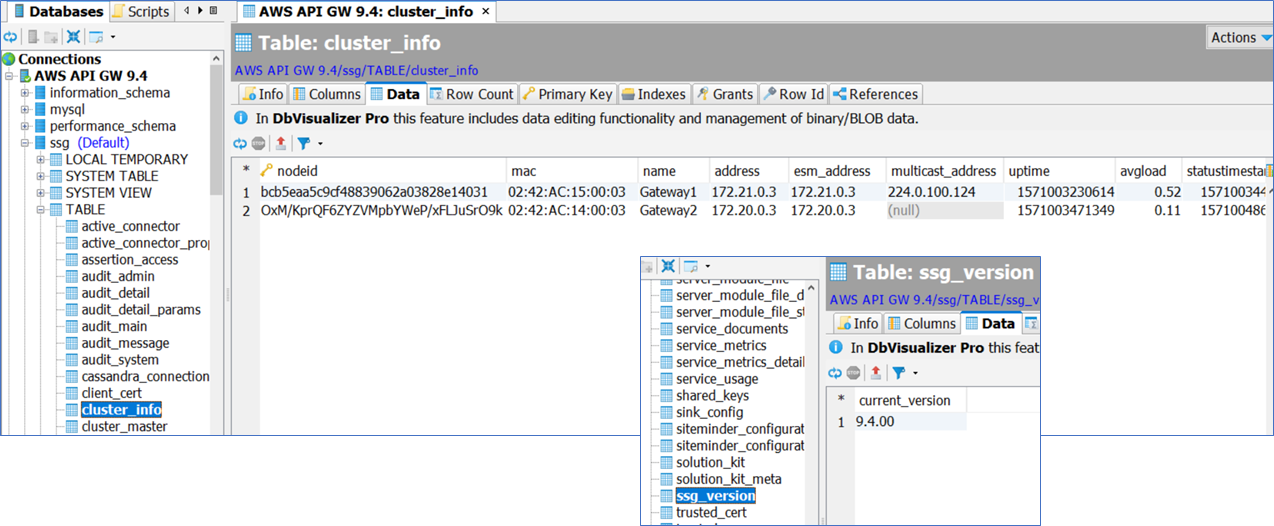

Interesting view of the API GW 9.4 MySQL database ‘ssg’ after import and a restart (that will ‘auto’ upgrade the ssg database version). Note multiple Gateway “nodes” that will appear after each ‘docker restart containerID’
