Upgrade CA API Gateway via docker “in-place”

CA API Gateway (ssg) is used to manage SaaS endpoints/applications for the CA/Symantec Identity Suite solution. One of the challenges of appliances and Docker containers is the underlying 3rd party libraries may get dated, and require updates.

Most vendors will not allow post-updates or direct updates to their containers libraries, as this has an impact on the support model. So we must rely on the support process and push vendors to release additional updates to stay ahead of any security concerns.


The CA API Gateway (ssg) when deployed on docker, has a streamlined process for updating in place, as long as you have backed-up the MySQL database when the docker images are updated.

We wanted to capture the process to upgrade from CA API Gateway 9.4 (ssg94) to Gateway 10.0 (ssg10). Fortunately, the MySQL 8.0 database has the same structure, tables, and routines as the MySQL 5.7 database for CA API Gateway 9.4.

The challenge we have is the documented process to upgrade is difficult to implement on the same host OS; and there was a lost opportunity to manage the license file from 9.4 to license 10.0 during the re-import of the MySQL database.


The below diagram, from the CA API Gateway 10.0 upgrade process can be adjusted to streamline the upgrade process.

expedited_scenario_1
Ref: https://techdocs.broadcom.com/content/broadcom/techdocs/us/en/ca-enterprise-software/layer7-api-management/api-gateway/10-0/install-configure-upgrade/upgrade-the-gateway/upgrade-an-appliance-gateway/manual-expedited-appliance-upgrade.html

The above-documented process outlines dropping the MySQL database ssg completely, and then create a new clean db. Using this documented process, we can slightly adjust it, to avoid an unnecessary step to re-import the license file after the restart of the gateway container. We also wish to add additional validation steps to show what is changing.

Proposal for modifications:

  1. Create a clean CA API Gateway 10.0 (ssg10) Docker deployment on the same Host OS. May use docker-compose with REST service enabled and use different TCP listening ports to allow two (2) docker containers to run simultaneously during the testing cycle. After testing may keep the default TCP license ports of 8443 & 9443.
  2. Allow the CA API Gateway 10.0 container to start cleanly with MySQL 8.0 DB and with the correct license file for version 10. Then export the MySQL database table that contains the updated license table.
  3. Import the prior backup MySQL file to the new CA API Gateway deployment. Then before startup, import the ssg10 license mysql file as well. This will replace the ssg94 license information.
  4. Restart the CA API Gateway container, and monitor the logs for any errors and ensure the new license file is used
  5. If REST API was enabled (via the docker-compose file & touch a file name “restman”), then use CURL to validate all REST services are available, and list all prior API Gateway Policy Services are displayed.

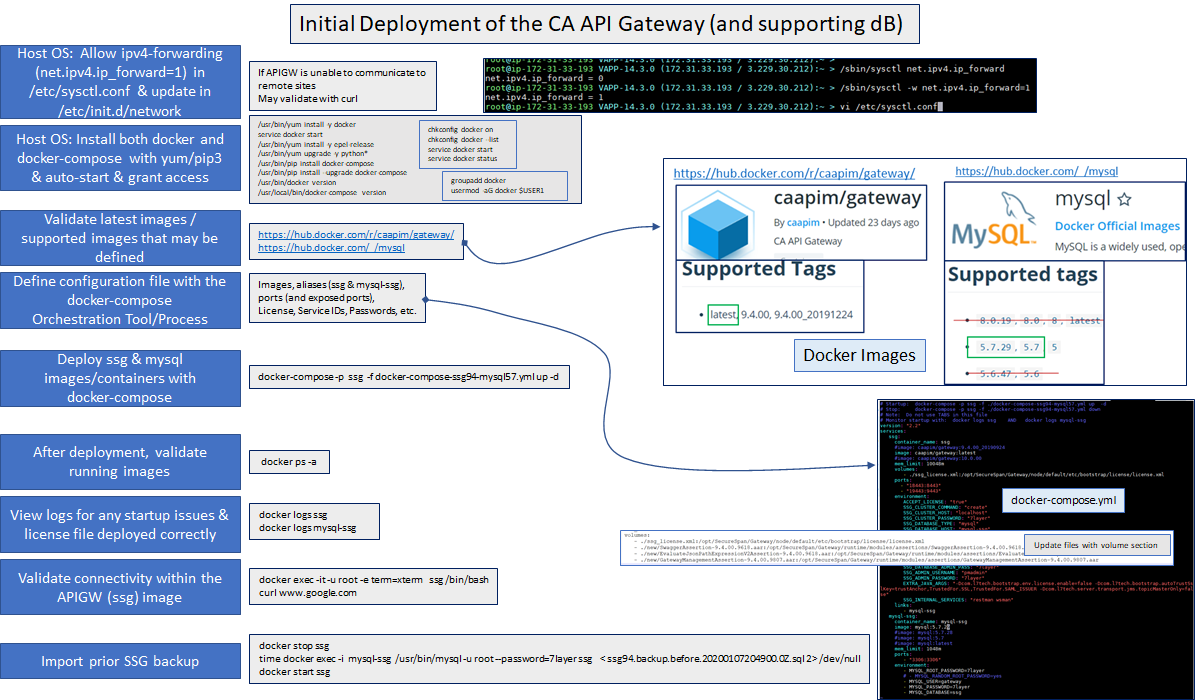

A visual example of this process using the prior diagram.

Note: The official documentation uses sed to replace a string “NO_AUTO_CREATE_USER”; but the documentation shows two examples. One with a comma & one without. We have included the one with the comma, but we did not see this line in the MySQL sql export, so it was deemed low value, but still included in our process.

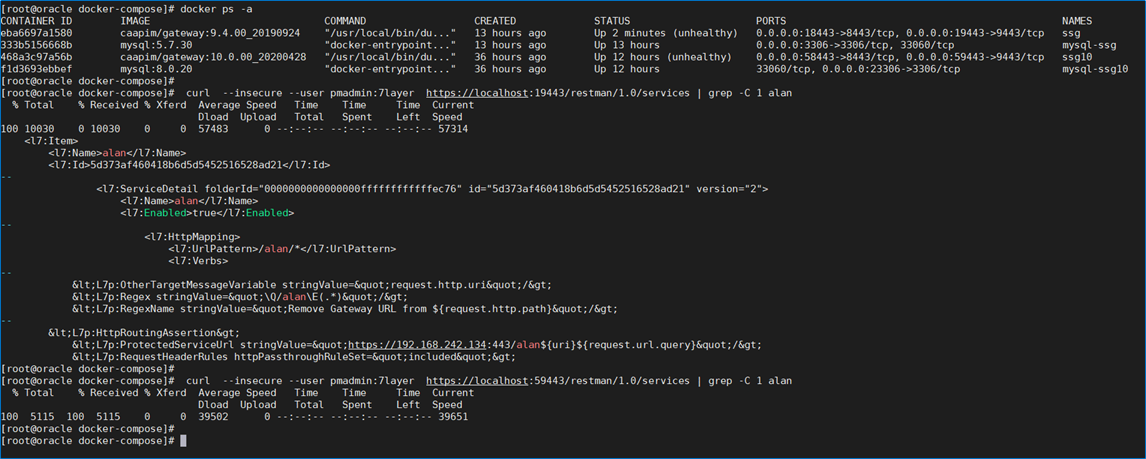

Example of upgrade process and validation of using REST

Note the two (2) running CA API Gateway container of 9.4 (with MySQL 5.7) and 10.0 (with MySQL 8.0) with different TCP listen services; and validation of REST services for ssg10

Below are the above steps called out with additional validations steps, and the use of the “time” command to monitor the export of the files.

# Pre-Step 1:  On Test System:  Prepare SSG10 docker compose yml file and correct license.xml & confirm startup.
time docker-compose -p ssg10 -f ./docker-compose-ssg10-0.yml up -d      {Wait 90-120 seconds}
docker ps -a
docker logs ssg10 -f --tail 100
docker exec -it mysql-ssg10   mysql --user=root --password=7layer -e "show databases;"


# Step 2:  On PROD HOST OS: Stop SSG94 and export the current MySQL 5.7 database with routines (aka stored procedures) & remove unwanted lines
docker stop ssg94
time docker exec -tt mysql-ssg  /usr/bin/mysqldump -h 127.0.0.1 -u root --password=7layer  ssg --routines > ssg94.backup.before.`/bin/date --utc +%Y%m%d%H%M%S.0Z`.sql
time docker exec -tt mysql-ssg  /usr/bin/mysqldump -h 127.0.0.1 -u root --password=7layer  ssg --routines > ssg94.backup.updated.for.mysql8.sql
sed -i "s/NO_AUTO_CREATE_USER,//g"   			ssg94.backup.updated.for.mysql8.sql
sed -i "/Using a password on the command/d" 	ssg94.backup.updated.for.mysql8.sql


# Step 3: On PROD HOST OS: Deploy SSG10 with docker compose yml file & correct license xml file & export db table license_document
time docker-compose -p ssg10 -f ./docker-compose-ssg10-0.yml up -d      {Wait 90-120 seconds}
docker ps -a
docker logs ssg10 -f --tail 100
docker stop ssg10
time docker exec -tt  mysql-ssg10  /usr/bin/mysqldump -h 127.0.0.1 -u root --password=7layer  ssg --routines license_document  > ssg10.license.export.sql
sed -i "/Using a password on the command/d" 	ssg10.license.export.sql

# Step 4: On PROD HOST OS: Drop the SSG10 MySQL 8.0 ssg database and rebuilt with imports of SQL files.
time docker exec -it -u root -e term=xterm mysql-ssg10 /usr/bin/mysqladmin --user=root --password=7layer drop ssg
docker exec -it mysql-ssg10   mysql --user=root --password=7layer -e "show databases;"
time docker exec -it -u root -e term=xterm mysql-ssg10 /usr/bin/mysqladmin --user=root --password=7layer create ssg
docker exec -it mysql-ssg10   mysql --user=root --password=7layer -e "show databases;"
time docker exec -i  mysql-ssg10  /usr/bin/mysql -u root --password=7layer ssg    <  ssg94.backup.updated.for.mysql8.sql
time docker exec -i  mysql-ssg10  /usr/bin/mysql -u root --password=7layer ssg    <  ssg10.license.export.sql
docker exec -it mysql-ssg10  mysql --user=root --password=7layer ssg  -e "SELECT * FROM license_document;" | grep -A 12 -e "<license "

# Step 5: On PROD HOST OS:  Start SSG10 and validate no errors
docker start ssg10       {Wait 90-120 seconds}
docker ps -a

# Step 6:  Validate license
docker logs ssg10 -f --tail 100
docker logs ssg10 -f 2>&1  | grep -i license

# Step 7:  Validate REST services enabled and we can see all services
curl --insecure --user pmadmin:7layer  https://localhost:9443/restman/1.0/rest.wadl
curl --insecure --user pmadmin:7layer  https://localhost:9443/restman/1.0/services
# Example to validate ServiceNow REST service to CA APIGW
curl --insecure --user  admin:gwALPtteR5R1  --compressed --header "Accept: application/json" --header "url: https://dev101846.service-now.com"  "https://localhost:9443/ServiceNow/v1/Users?filter=userName+eq+%22ztestalan10340%22&attributes=userName"
# Example validate ServiceNow REST service via LB to CA APIGW
curl --insecure --user  admin:gwALPtteR5R1  --compressed --header "Accept: application/json" --header "url: https://dev101846.service-now.com"  "https://192.168.242.135/ServiceNow/v1/Users?filter=userName+eq+%22ztestalan10340%22&attributes=userName"
# Direct REST service to ServiceNow to validate development instance is available.
curl --user  admin:gwALPtteR5R1  --compressed --header "Accept: application/json"  'https://dev101846.service-now.com/api/now/table/sys_user?sysparm_query=user_name=testalan13095'

# Step 8:  Certs required for IM JCS Tier to avoid typical cert issues.
a. Ensure the CA API Gateway public root CA cert or self-signed cert is imported to each JCS keystore
b. If using a LoadBalancer, e.g. httpd, ensure this public root CA cert or self-signed cert is imported to each JCS keystore.

docker commands collected to assist with RCA efforts for Operation Teams

# Extra commands to assist RCA efforts or OPS teams
#
# Validate routing is enabled within the CAAPIGW (ssg) container
#   docker exec -it ssg  bash -c "curl -L www.google.com"
#   docker exec -it -u root -e term=xterm ssg /bin/bash -c "curl -vk --tlsv1.2  https://www.service-now.com"

# Interactive Session with mysql>  prompt
#  docker exec -it mysql-ssg   mysql --user=root --password=7layer
#  docker exec -it mysql-ssg   mysql --user=root --password=7layer -e "show databases;"
#  docker exec -it mysql-ssg   mysql --user=root --password=7layer -e "SELECT User,Password,authentication_string FROM mysql.user;"
#  docker exec -it mysql-ssg   mysql --user=root --password=7layer -e "SELECT name,login,password,enabled,expiration,password_expiry FROM internal_user;"


#  docker exec -it mysql-ssg   mysql --user=root --password=7layer -e "truncate logon_info;"
#  docker exec -it mysql-ssg   mysql --user=root --password=7layer -e "delete from logon_info where login ='ssgadmin';"
# If MySQL root password is random, find via logs  (use redirect to switch from JSON to text to use grep)


#  docker logs mysql-ssg 2>&1 | grep -i "Generated root password"
#  docker logs mysql-ssg -f       {Used to tail the logs}
#  Limit the logs to see
#  docker logs ssg10 -f --tail 100

# Commands to install additional packages for vul scans (ps from procps) & update passwords (mkpasswd from whois)
#   docker exec -it -u root -e term=xterm   mysql-ssg   /bin/bash -c "apt-get update -y && apt-get upgrade -y && apt-get install -y procps && apt-get install -y whois"
#   docker exec -it  mysql-ssg ps aux

#  Update password process
# Generate SSHA512 Password (use one of the below methods)
#   docker exec -it -u root -e term=xterm   mysql-ssg   /bin/bash -c "mkpasswd -m sha-512 7layer"
#   python -c 'import crypt; print(crypt.crypt("7layer", crypt.mksalt(crypt.METHOD_SHA512)))'
#   perl -le 'print crypt "7layer", "\$6\$customSalt\$"'

# Update password via command line (escape any $ characters)
#  docker exec -it -u root -e term=xterm  mysql-ssg mysql  --user=root --password=7layer ssg -e "UPDATE internal_user SET password='\$6\$SzW/q9xVM9\$Ed/LjCDVpIYNTq94CsqO2stR0h4KniPOl/7iQDv1SEXNu9ftv//6hohlJxNeizmac/V9cEb6WmJfdHQCFwpoc0' WHERE name='pmadmin'; "

# View user and password hash in DB
#   docker exec -it -u root -e term=xterm  mysql-ssg mysql  --user=root --password=7layer ssg -e "select * from internal_user \G;"

# View if account is active
#   docker exec -it -u root -e term=xterm  mysql-ssg mysql  --user=root --password=7layer ssg -e "select * from logon_info \G;"

# Reset if account is NOT active
#   docker exec -it -u root -e term=xterm  mysql-ssg mysql  --user=root --password=7layer ssg -e "UPDATE logon_info set state='ACTIVE', fail_count=0 where login='pmadmin';"

# REST WEB SERVICES
#  curl --insecure --user pmadmin:7layer  https://localhost:9443/restman/1.0/doc/home.html
#  curl --insecure --user pmadmin:7layer  https://localhost:9443/restman/1.0/services
#  curl --insecure --user pmadmin:7layer  https://localhost:9443/restman/1.0/rest.wadl
#  curl --insecure --user pmadmin:7layer  https://localhost:9443/restman/1.0/gateway-management.xsd
#  curl --insecure --user pmadmin:7layer  https://localhost:9443/restman/1.0/folders
#  curl --insecure --user pmadmin:7layer  https://localhost:9443/restman/1.0/folders/template
#  curl --insecure --user pmadmin:7layer  https://localhost:9443/restman/1.0/folders?name=My%20Service
#  curl --insecure --user pmadmin:7layer  https://localhost:9443/restman/1.0/doc/restDoc.html
#  curl --insecure --user pmadmin:7layer  https://localhost:9443/restman/1.0/emailListeners?sort=host&order=desc
#  curl --insecure --user pmadmin:7layer  https://localhost:9443/restman/1.0/doc/authentication.html
#  curl --insecure --user pmadmin:7layer  https://localhost:9443/restman/1.0/passwords/template
#  curl --insecure --user pmadmin:7layer  https://localhost:9443/restman/1.0/policies/template
#  curl --insecure --user pmadmin:7layer  https://localhost:9443/restman/1.0/doc/migration.html
#  curl --insecure --user pmadmin:7layer  https://localhost:9443/restman/1.0/ssgconnectors?enabled=true
#  curl --insecure --user pmadmin:7layer  https://localhost:9443/restman/1.0/clusterProperties/template
#  curl --insecure --user pmadmin:7layer  https://localhost:9443/restman/1.0/rest.wadl

Change the pmadmin password at the docker command line

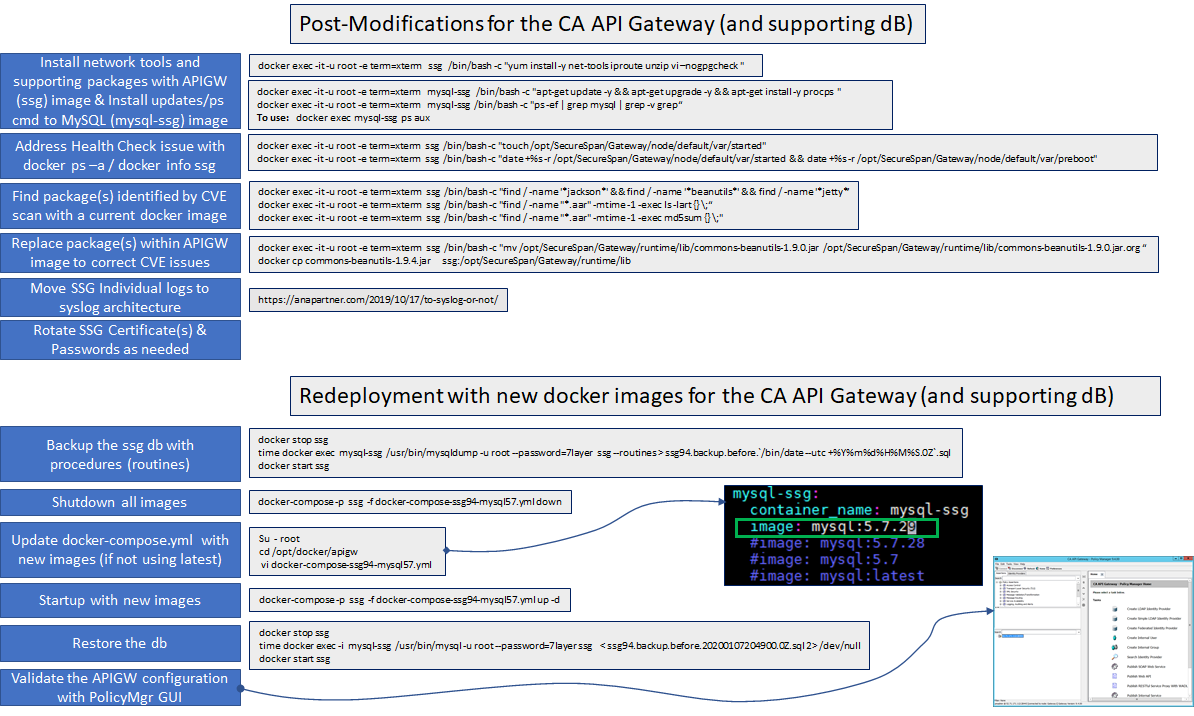

Process flows collect for the CA API Gateway docker deployment

Example of the docker-compose yml file for CA API Gateway with REST web services and license xml file.

We attempt to keep useful notes/hints included in the yml file to allow for future reference. The example below redirect ports to TCP 18443 and 19443 from the standard ports of 8443 and 9443 for the CA API Gateway; and MySQL from 3306 to 23306 for testing protocols in non-Production enviornments.

# docker-compose-ssg10-0-mysql8-0_with_rest_and_external_mysql_volume.yml
# Startup:  docker-compose -p ssg -f ./docker-compose-ssg10-0-mysql8.yml up  -d
# Stop:     docker-compose -p ssg -f ./docker-compose-ssg10-0-mysql8.yml down
#
#
# Ensure Host OS Network allows IPv4 forwarding:   sysctl -a | grep ipv4.ip_forward
# Validate docker network has access with curl:  curl -vk --tlsv1.2  https://www.service-now.com
# Note:  Do NOT use TABS in this file
# Monitor startup of containers with:  docker logs ssg10 -f --tail 100   AND   docker logs mysql-ssg10 -f  --tail 100
# https://techdocs.broadcom.com/content/broadcom/techdocs/us/en/ca-enterprise-software/layer7-api-management/api-gateway/10-0/using-the-container-gateway/getting-started-with-the-container-gateway/run-the-container-gateway-on-docker-engine/sample-docker-compose-deployment-file.html
version: "2.2"
services:
   ssg10:
     container_name: ssg10
     # Ref: https://hub.docker.com/r/caapim/gateway/tags
     #image: caapim/gateway:latest
     image: caapim/gateway:10.0.00_20200428
     mem_limit: 10048m
     volumes:
        # Ensure ssg_license.xml is a valid SSG license file for 9.4 or 10.0
        - ./ssg_license_10.xml:/opt/SecureSpan/Gateway/node/default/etc/bootstrap/license/license.xml
        # https://techdocs.broadcom.com/content/broadcom/techdocs/us/en/ca-enterprise-software/layer7-api-management/api-gateway/10-0/apis-and-toolkits/rest-management-api.html
        # Touch the file restman to auto-start rest webservices
        # Validate REST API with curl
        # curl --insecure --user pmadmin:7layer  https://localhost:19443/restman/1.0/rest.wadl
        # curl --insecure --user pmadmin:7layer  https://localhost:18443/restman/1.0/rest.wadl
        - ./restman:/opt/SecureSpan/Gateway/node/default/etc/bootstrap/services/restman
     ports:
       - "58443:8443"
       - "59443:9443"
     environment:
        ACCEPT_LICENSE: "true"
        SSG_CLUSTER_COMMAND: "create"
        SSG_CLUSTER_HOST: "localhost"
        SSG_CLUSTER_PASSWORD: "7layer"
        SSG_DATABASE_TYPE: "mysql"
        SSG_DATABASE_HOST: "mysql-ssg"
        SSG_DATABASE_PORT: "3306"
        SSG_DATABASE_NAME: "ssg"
        SSG_DATABASE_USER: "gateway"
        SSG_DATABASE_PASSWORD: "7layer"
        SSG_DATABASE_JDBC_URL: "jdbc:mysql://mysql-ssg10:3306/ssg?useSSL=false"
        SSG_DATABASE_ADMIN_USER: "root"
        SSG_DATABASE_ADMIN_PASS: "7layer"
        SSG_ADMIN_USERNAME: "pmadmin"
        SSG_ADMIN_PASSWORD: "7layer"
        EXTRA_JAVA_ARGS: "-Dcom.l7tech.bootstrap.env.license.enable=false -Dcom.l7tech.bootstrap.autoTrustSslKey=trustAnchor,TrustedFor.SSL,TrustedFor.SAML_ISSUER -Dcom.l7tech.server.transport.jms.topicMasterOnly=false"
        SSG_INTERNAL_SERVICES: "restman wsman"
     links:
        - mysql-ssg10
   mysql-ssg10:
     container_name: mysql-ssg10
     # Ref https://hub.docker.com/_/mysql?tab=tags
     image: mysql:8.0.20
     #image: mysql:latest
     # SSG 10.0 requires MySQL 8.x per documentation
     #https://techdocs.broadcom.com/content/broadcom/techdocs/us/en/ca-enterprise-software/layer7-api-management/api-gateway/10-0/install-configure-upgrade/using-mysql-8_0-with-gateway-10.html
     mem_limit: 1048m
     restart: always
     ports:
        - "23306:3306"
     environment:
        - MYSQL_ROOT_PASSWORD=7layer
        #- MYSQL_RANDOM_ROOT_PASSWORD=yes
        - MYSQL_USER=gateway
        - MYSQL_PASSWORD=7layer
        - MYSQL_DATABASE=ssg
     command:
       - "--character-set-server=utf8mb3"
       - "--log-bin-trust-function-creators=1"
       - "--default-authentication-plugin=mysql_native_password"
       - "--innodb_log_buffer_size=32M"
       - "--innodb_log_file_size=80M"
       - "--max_allowed_packet=8M"
#     volumes:
#       - mysql_db8:/var/lib/mysql
# Persist SSG MySQL DB Data
# Validate after shutdown with:  docker volume ls  &  docker volume inspect ssg_mysql_db
# Note:  Important - Random Root Password will not work for persist MySQL - Password must be known for 1st time
#   volumes:
#     mysql_db8:
#
# Extra commands to assist RCA efforts or OPS teams
#
# Validate routing is enabled within the CAAPIGW (ssg) container
#   docker exec -it ssg  bash -c "curl -L www.google.com"
#   docker exec -it -u root -e term=xterm ssg /bin/bash -c "curl -vk --tlsv1.2  https://www.service-now.com"
# Interactive Session with mysql>  prompt
#  docker exec -it mysql-ssg   mysql --user=root --password=7layer
#  docker exec -it mysql-ssg   mysql --user=root --password=7layer -e "show databases;"
#  docker exec -it mysql-ssg   mysql --user=root --password=7layer -e "SELECT User,Password,authentication_string FROM mysql.user;"
#  docker exec -it mysql-ssg   mysql --user=root --password=7layer -e "SELECT name,login,password,enabled,expiration,password_expiry FROM internal_user;"
#  docker exec -it mysql-ssg   mysql --user=root --password=7layer -e "truncate logon_info;"
#  docker exec -it mysql-ssg   mysql --user=root --password=7layer -e "delete from logon_info where login ='ssgadmin';"
# If MySQL root password is random, find via logs  (use redirect to switch from JSON to text to use grep)
#  docker logs mysql-ssg 2>&1 | grep -i "Generated root password"
#  docker logs mysql-ssg -f       {Used to tail the logs}
#  Limit the logs to see
#  docker logs ssg10 -f --tail 100
# Commands to install additional packages for vul scans (ps from procps) & update passwords (mkpasswd from whois)
#   docker exec -it -u root -e term=xterm   mysql-ssg   /bin/bash -c "apt-get update -y && apt-get upgrade -y && apt-get install -y procps && apt-get install -y whois"
#   docker exec -it  mysql-ssg ps aux
#  Update password process
# Generate SSHA512 Password (use one of the below methods)
#   docker exec -it -u root -e term=xterm   mysql-ssg   /bin/bash -c "mkpasswd -m sha-512 7layer"
#   python -c 'import crypt; print(crypt.crypt("7layer", crypt.mksalt(crypt.METHOD_SHA512)))'
#   perl -le 'print crypt "7layer", "\$6\$customSalt\$"'
# Update password via command line (escape any $ characters)
#  docker exec -it -u root -e term=xterm  mysql-ssg mysql  --user=root --password=7layer ssg -e "UPDATE internal_user SET password='\$6\$SzW/q9xVM9\$Ed/LjCDVpIYNTq94CsqO2stR0h4KniPOl/7iQDv1SEXNu9ftv//6hohlJxNeizmac/V9cEb6WmJfdHQCFwpoc0' WHERE name='pmadmin'; "
# View user and password hash in DB
#   docker exec -it -u root -e term=xterm  mysql-ssg mysql  --user=root --password=7layer ssg -e "select * from internal_user \G;"
# View if account is active
#   docker exec -it -u root -e term=xterm  mysql-ssg mysql  --user=root --password=7layer ssg -e "select * from logon_info \G;"
# Reset if account is NOT active
#   docker exec -it -u root -e term=xterm  mysql-ssg mysql  --user=root --password=7layer ssg -e "UPDATE logon_info set state='ACTIVE', fail_count=0 where login='pmadmin';"
# REST WEB SERVICES
#  curl --insecure --user pmadmin:7layer  https://localhost:19443/restman/1.0/doc/home.html
#  curl --insecure --user pmadmin:7layer  https://localhost:19443/restman/1.0/services
#  curl --insecure --user pmadmin:7layer  https://localhost:19443/restman/1.0/rest.wadl
#  curl --insecure --user pmadmin:7layer  https://localhost:19443/restman/1.0/gateway-management.xsd
#  curl --insecure --user pmadmin:7layer  https://localhost:19443/restman/1.0/folders
#  curl --insecure --user pmadmin:7layer  https://localhost:19443/restman/1.0/folders/template
#  curl --insecure --user pmadmin:7layer  https://localhost:19443/restman/1.0/folders?name=My%20Service
#  curl --insecure --user pmadmin:7layer  https://localhost:19443/restman/1.0/doc/restDoc.html
#  curl --insecure --user pmadmin:7layer  https://localhost:19443/restman/1.0/emailListeners?sort=host&order=desc
#  curl --insecure --user pmadmin:7layer  https://localhost:19443/restman/1.0/doc/authentication.html
#  curl --insecure --user pmadmin:7layer  https://localhost:19443/restman/1.0/passwords/template
#  curl --insecure --user pmadmin:7layer  https://localhost:19443/restman/1.0/policies/template
#  curl --insecure --user pmadmin:7layer  https://localhost:19443/restman/1.0/doc/migration.html
#  curl --insecure --user pmadmin:7layer  https://localhost:19443/restman/1.0/ssgconnectors?enabled=true
#  curl --insecure --user pmadmin:7layer  https://localhost:19443/restman/1.0/clusterProperties/template
#  curl --insecure --user pmadmin:7layer  https://localhost:19443/restman/1.0/rest.wadl

Clean-Up Orphans and Refine Correlation Rules

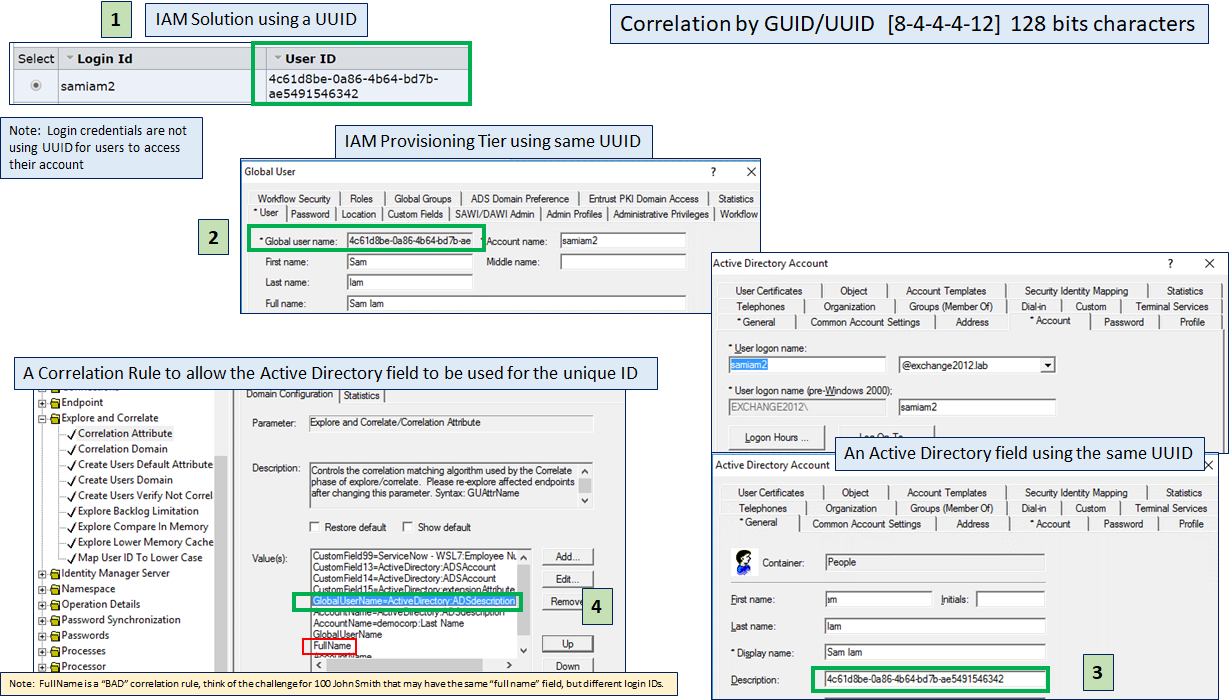

Correlation rules may be very simple. A unique ID on an IAM solution should match the unique ID (or combinations of attributes) to form a one-to-one (1:1) relationship to the identity on a managed endpoint/application.

Most sites that had the opportunity have started using GUID/UUID values for the correlation ID on the IAM solutions and if the endpoint/application allows it, the same GUID/UUID on an open field, that likely is not the same as the login ID field.

Example below using a GUID/UUID format as the primary identifier with the IAM solution and the endpoint/application of an Active Directory domain.

We may also have many different correlation rules or primary/secondary correlation for every application/endpoint. Until the correlation is correct we have the likelihood of an incorrect correlation or default correlation.

If we wish to remove an incorrect correlation, this may be done manually to remove or re-attach the correct entries. However, this would not address future correlation processes if the rules are not updated.

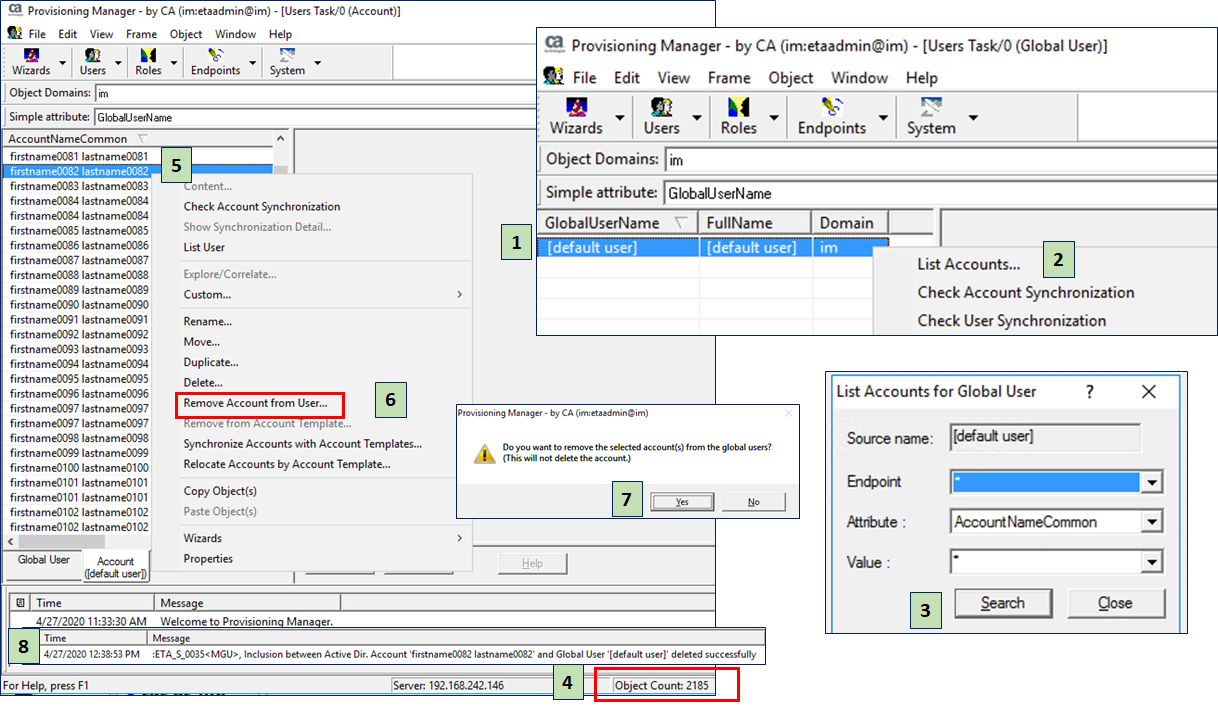

Example of removing a correlation from the orphan ID “[default user]”


Example to remove a incorrect correlation manually within the IAM solution

To assist with refinement of correlation rules, a feedback process/script may have value.

The below script demonstrates using OS ldapsearch/ldapdelete processes with the CA Identity Manager Provisioning Tier (TCP 20389/20390) a feedback process to cleanup the Orphans IDs under “[default user]”

The script will query all “inclusions” where an endpoint account has been incorrectly associated with the Global user “[default user]” and return a count of these records. The process will capture the dn values of these inclusions records, and then feed them to the Open LDAP ldapdelete process to have them removed. Since we are using the IMPS service (TCP 20389/20390) we are still allowing the solution to maintain referential integrity during the clean-up process.

After the deletion are complete, we will re-initialize a new E&C (explore & correlate) process using any new Correlation Rules that may have been added. It is this opportunity that an administrator may wish to adjust their own correlation rules; and then re-execute the script. If the correlation rules do not match, then the prior correlations will return to the “[default user]”.

#!/bin/bash
#####################################################################################################################
#
# Name: Clean Up [default user]
#
# Goal:  Script to clean up [default_user] correlations to allow for better orphan or rogue account identification
#  - Ensure that IMPS Service TCP 20389/20390 is used to maintain referential integrity of the inclusions entries
#    during delete operations.
#
# Ref:  CA IM r14.x solution & OS ldapsearch/ldapdelete
#
# A. Baugher, ANA, 04/2020
#
#####################################################################################################################
# set -xv
DATETZ=$(date -d "1970-01-01 00:00:00 `date +'%s'` seconds"  +'%Y-%m-%dT%H:%M:%S.%3NZ')
IMPSHOST=`hostname`
IMPSPORT=20390
IMPSUSERDN='eTGlobalUserName=etaadmin,eTGlobalUserContainerName=Global Users,eTNamespaceName=CommonObjects,dc=im,dc=eta'
# Use pwd file to avoid clear text passwords in script
# echo -n CLEAR_TEXT_PASSWORD > .imps.pwd
IMPSPWD=`cat .imps.pwd`
#####################################################################################################################
BASE_DN='eTSuperiorClass=eTGlobalUser,eTInclusionContainerName=Inclusions,eTNamespaceName=CommonObjects,dc=im,dc=eta'
SUP_DN_ENTRY='eTGlobalUserName=[default user],eTGlobalUserContainerName=Global Users,eTNamespaceName=CommonObjects,dc=im'
FILTER="(&(objectClass=eTInclusionObject)(eTSuperiorClassEntry=$SUP_DN_ENTRY))"
SEARCH=sub
ATTRIBUTES='dn eTInclusionID'
EXCLUDE="  -e ^$ "
#SIZE=" -z 10"
SIZE=" -z 0"
FILENAME=default_user_guid.txt
rm -rf $FILENAME
echo ""
echo "#################################################################################################"
echo "#### How many EA (endpoint accounts) are correlated to the Global User [default user] ###########"
echo "#################################################################################################"
LDAPTLS_REQCERT=never ldapsearch $SIZE -LLL -H ldaps://$IMPSHOST:$IMPSPORT -D "$IMPSUSERDN" -w $IMPSPWD -b $BASE_DN -s $SEARCH "$FILTER" $ATTRIBUTES | perl -p00e 's/\r?\n //g' | grep -v $EXCLUDE | awk -F": " '{print $2}'  | grep eTInclusionID | wc -l
echo "#################################################################################################"
LDAPTLS_REQCERT=never ldapsearch $SIZE -LLL -H ldaps://$IMPSHOST:$IMPSPORT -D "$IMPSUSERDN" -w $IMPSPWD -b $BASE_DN -s $SEARCH "$FILTER" $ATTRIBUTES | perl -p00e 's/\r?\n //g' | grep -v $EXCLUDE | awk -F": " '{print $2}'  | grep eTInclusionID > tmp_file
echo "LDAPTLS_REQCERT=never ldapsearch $SIZE -LLL -H ldaps://$IMPSHOST:$IMPSPORT -D '$IMPSUSERDN' -y ./.imps.pwd -b '$BASE_DN' -s $SEARCH '$FILTER' $ATTRIBUTES | perl -p00e 's/\r?\n //g' | grep -v $EXCLUDE | awk -F': ' '{print \$2}' | grep eTInclusionID "
uniq -i tmp_file > $FILENAME
echo "#################################################################################################"
echo "# of unique Endpoint Accounts that are Correlated to [default user] matching query filter : "`cat $FILENAME | wc -l`
rm -rf tmp_file
echo "#################################################################################################"



echo ""
echo "####################################################################################################################"
echo "#### Remove `cat $FILENAME | wc -l` EA (endpoint accounts) that are correlated to the Global User [default user] "
echo "####################################################################################################################"
LDAPTLS_REQCERT=never ldapdelete -v -c -H ldaps://$IMPSHOST:$IMPSPORT -D "$IMPSUSERDN" -w $IMPSPWD -f $FILENAME
echo ""
echo "#################################################################################################"
echo "#### How many EA (endpoint accounts) are correlated to the Global User [default user] ###########"
echo "#################################################################################################"
LDAPTLS_REQCERT=never ldapsearch $SIZE -LLL -H ldaps://$IMPSHOST:$IMPSPORT -D "$IMPSUSERDN" -w $IMPSPWD -b $BASE_DN -s $SEARCH "$FILTER" $ATTRIBUTES | perl -p00e 's/\r?\n //g' | grep -v $EXCLUDE | awk -F": " '{print $2}'  | grep eTInclusionID | wc -l
echo "#################################################################################################"


echo ""
echo "#################################################################################################"
echo "#### Re-explore & correlate to update Global User [default user] orphan bucket."
echo "#################################################################################################"
echo ""
IMPSADSBASEDN="eTADSDirectoryName=dc2016.exchange.lab,eTNamespaceName=ActiveDirectory,dc=im,dc=eta"
LDAPTLS_REQCERT=never ldapsearch $SIZE -LLL -H ldaps://$IMPSHOST:$IMPSPORT -D "$IMPSUSERDN" -w $IMPSPWD -b "$IMPSADSBASEDN" -s sub "(objectClass=*)" eTExploreUpdateEtrust
LDAPTLS_REQCERT=never ldapsearch $SIZE -LLL -H ldaps://$IMPSHOST:$IMPSPORT -D "$IMPSUSERDN" -w $IMPSPWD -b "$IMPSADSBASEDN" -s sub "(objectClass=*)" eTExploreCorrelateUsers

IMPSADSBASEDN="eTADSDirectoryName=dc2012.exchange2012.lab,eTNamespaceName=ActiveDirectory,dc=im,dc=eta"
LDAPTLS_REQCERT=never ldapsearch $SIZE -LLL -H ldaps://$IMPSHOST:$IMPSPORT -D "$IMPSUSERDN" -w $IMPSPWD -b "$IMPSADSBASEDN" -s sub "(objectClass=*)" eTExploreUpdateEtrust
LDAPTLS_REQCERT=never ldapsearch $SIZE -LLL -H ldaps://$IMPSHOST:$IMPSPORT -D "$IMPSUSERDN" -w $IMPSPWD -b "$IMPSADSBASEDN" -s sub "(objectClass=*)" eTExploreCorrelateUsers


echo ""
echo "#################################################################################################"
echo "#### How many EA (endpoint accounts) are correlated to the Global User [default user] ###########"
echo "#################################################################################################"
LDAPTLS_REQCERT=never ldapsearch $SIZE -LLL -H ldaps://$IMPSHOST:$IMPSPORT -D "$IMPSUSERDN" -w $IMPSPWD -b $BASE_DN -s $SEARCH "$FILTER" $ATTRIBUTES | perl -p00e 's/\r?\n //g' | grep -v $EXCLUDE | awk -F": " '{print $2}'  | grep eTInclusionID | wc -l
echo "#################################################################################################"
echo ""

Example of the output of the script (with 1000’s of lines remove for clarity). Includes E&C to two (2) ADS endpoints, where > 2000 identities will default correlation to the orphan Global User “[default user]”.

#################################################################################################
#### How many EA (endpoint accounts) are correlated to the Global User [default user] ###########
#################################################################################################
2184
#################################################################################################
LDAPTLS_REQCERT=never ldapsearch  -z 0 -LLL -H ldaps://vapp0001:20390 -D 'eTGlobalUserName=etaadmin,eTGlobalUserContainerName=Global Users,eTNamespaceName=CommonObjects,dc=im,dc=eta' -y ./.imps.pwd -b 'eTSuperiorClass=eTGlobalUser,eTInclusionContainerName=Inclusions,eTNamespaceName=CommonObjects,dc=im,dc=eta' -s sub '(&(objectClass=eTInclusionObject)(eTSuperiorClassEntry=eTGlobalUserName=[default user],eTGlobalUserContainerName=Global Users,eTNamespaceName=CommonObjects,dc=im))' dn eTInclusionID | perl -p00e 's/\r?\n //g' | grep -v   -e ^$  | awk -F': ' '{print $2}' | grep eTInclusionID
#################################################################################################
# of unique Endpoint Accounts that are Correlated to [default user] matching query filter : 2184
#################################################################################################

####################################################################################################################
#### Remove 2184 EA (endpoint accounts) that are correlated to the Global User [default user]
####################################################################################################################
ldap_initialize( ldaps://vapp0001:20390/??base )
deleting entry "eTInclusionID=df104a69-e746-49df-9a61-51e8c20038d0@67d6bf2c-1104-1039-96c4-ef7605d11763,eTSubordinateClass=eTADSAccount,eTSuperiorClass=eTGlobalUser,eTInclusionContainerName=Inclusions,eTNamespaceName=CommonObjects,dc=im,dc=eta"
Delete Result: Success (0)
Additional info: :ETA_S_0035<MGU>, Inclusion between Active Dir. Account 'firstname6 mi. lastname6' and Global User '[default user]' deleted successfully
deleting entry "eTInclusionID=df104a69-e746-49df-9a61-51e8c20038d0@65e02962-00bd-1039-830f-ae134a0f7638,eTSubordinateClass=eTADSAccount,eTSuperiorClass=eTGlobalUser,eTInclusionContainerName=Inclusions,eTNamespaceName=CommonObjects,dc=im,dc=eta"
Delete Result: Success (0)
Additional info: :ETA_S_0035<MGU>, Inclusion between Active Dir. Account 'firstname0002 lastname0002' and Global User '[default user]' deleted successfully

[Deleted > 5000 similar rows ]

deleting entry "eTInclusionID=df104a69-e746-49df-9a61-51e8c20038d0@ce05d098-1b32-1039-85ec-b0629a56714f,eTSubordinateClass=eTADSAccount,eTSuperiorClass=eTGlobalUser,eTInclusionContainerName=Inclusions,eTNamespaceName=CommonObjects,dc=im,dc=eta"
Delete Result: Success (0)
Additional info: :ETA_S_0035<MGU>, Inclusion between Active Dir. Account 'ffffff' and Global User '[default user]' deleted successfully
deleting entry "eTInclusionID=df104a69-e746-49df-9a61-51e8c20038d0@75a62f60-1b32-1039-85ea-b0629a56714f,eTSubordinateClass=eTADSAccount,eTSuperiorClass=eTGlobalUser,eTInclusionContainerName=Inclusions,eTNamespaceName=CommonObjects,dc=im,dc=eta"
Delete Result: Success (0)
Additional info: :ETA_S_0035<MGU>, Inclusion between Active Dir. Account 'eeeee' and Global User '[default user]' deleted successfully

#################################################################################################
#### How many EA (endpoint accounts) are correlated to the Global User [default user] ###########
#################################################################################################
0
#################################################################################################

#################################################################################################
#### Re-explore & correlate to update Global User [default user] orphan bucket.
#################################################################################################

Additional information: :ETA_S_0023<EDI>, Active Directory Endpoint 'dc2016.exchange.lab' exploration successful: (objects added: 0, deleted: 0, updated: 0, unchanged: 672, failures: 0)
Additional information: :ETA_S_0017<EDI>, Active Directory Endpoint 'dc2016.exchange.lab' correlation successful: (accounts correlated: 0, defaulted: 566, unchanged: 6, failures: 0)
Additional information: :ETA_S_0023<EDI>, Active Directory Endpoint 'dc2012.exchange2012.lab' exploration successful: (objects added: 0, deleted: 0, updated: 0, unchanged: 1871, failures: 0)
Additional information: :ETA_S_0017<EDI>, Active Directory Endpoint 'dc2012.exchange2012.lab' correlation successful: (accounts correlated: 0, defaulted: 1619, unchanged: 153, failures: 0)

#################################################################################################
#### How many EA (endpoint accounts) are correlated to the Global User [default user] ###########
#################################################################################################
2185
#################################################################################################


Modify the above script for your own application/endpoints and refine your correlation rules (or add additional ones as needed.)

If applications/endpoints identities are non-managed service IDs, a process that may be used to assist is shown below. Create a new Global User (similar format as [default user]), and then drag-n-drop the endpoint/application service ID accounts to the new Global User [endpoint A service ID].

The final goal is a “clean” orphan process, that will be able to alert us to any rogue accounts being created OOB (out-of-band) of the expected top-down IAM solution from an approved SOT (source-of-truth) solution, e.g. SAP HR/Workday or home-grown DB used with ETL processes. By removing the “noise” of incorrectly correlated accounts, we can now focus on identifying the true “orphans”.

WAN Latency: Rsync versus SCP

We were curious about what methods we can use to manage large files that must be copied between sites with WAN-type latency and also restrict ourselves to processes available on the CA Identity Suite virtual appliance / Symantec IGA solution.

Leveraging VMware Workstation’s ability to introduce network latency between images, allows for a validation of a global password reset solution.

If we experience deployment challenges with native copy operations, we need to ensure we have alternatives to address any out-of-sync data.

The embedded CA Directory maintains the data tier in separate binary files, using a software router to join the data tier into a virtual directory. This allows for scalability and growth to accommodate the largest of sites.

We focused on the provisioning directory (IMPD) as our likely candidate for re-syncing.

Test Conditions:

  1. To ensure the data was being securely copied, we kept the requirement for SSH sessions between two (2) different nodes of a cluster.

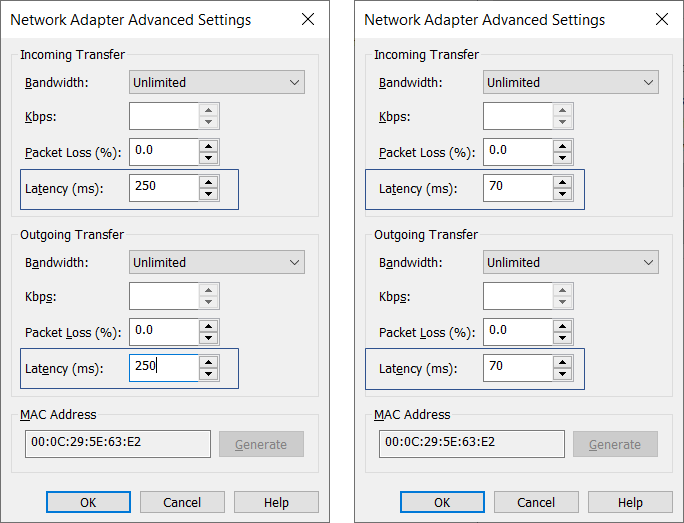

  2. We introduce latency with VMware Workstation NIC for one of the nodes.

3. The four (4) IMPD Data DSAs were resized to 2500 MB each (a similar size we have seen in production at many sites).

4. We removed data and the folder structure from the receiving node to avoid any checksum restart processes from gaining an unfair advantage.

5. If the process allowed for exclusions, we did take advantage of this feature.

6. The feature/process/commands must be available on the vApp to the ‘config’ or ‘dsa’ userIDs.

7. The reference host/node that is being pulled, has the CA Directory Data DSAs offline (dxserver stop all) to prevent ongoing changes to the files during the copy operation.

Observations:

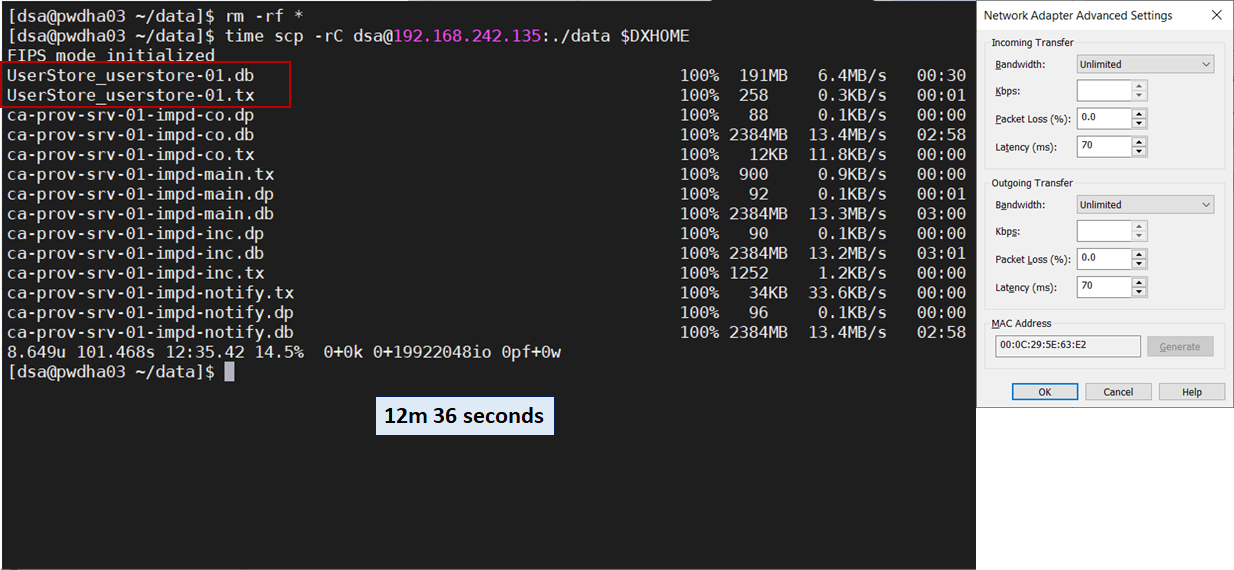

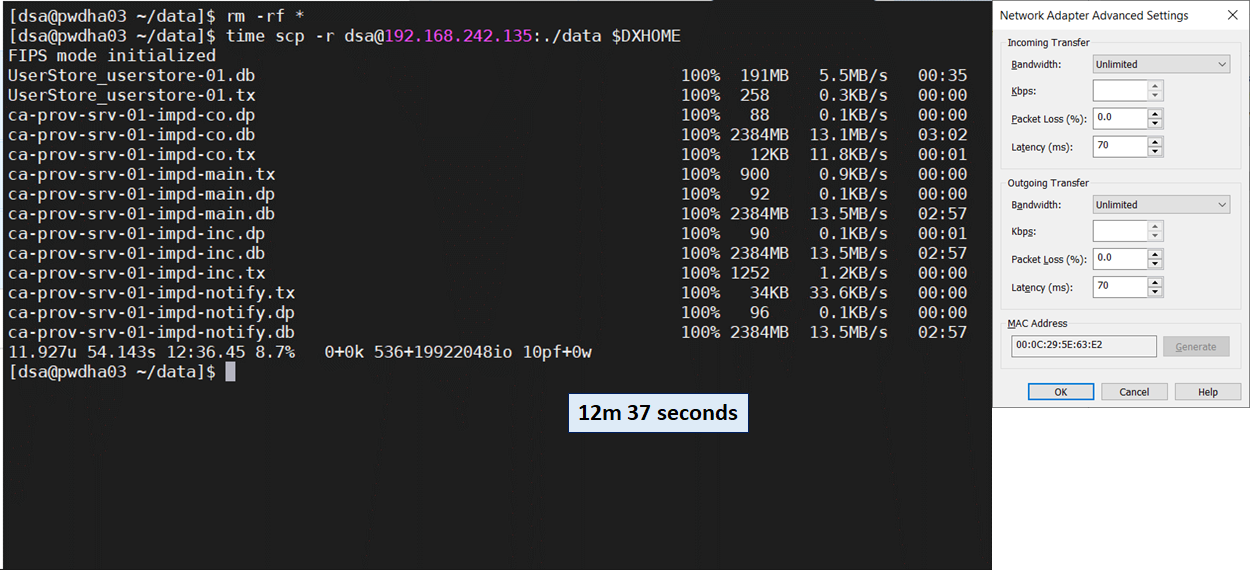

SCP without Compression: Unable to exclude other files (*.tx,*.dp, UserStore) – This process took over 12 minutes to copy 10,250 MB of data

SCP with Compression: Unable to exclude other files (*.tx,*.dp, UserStore) – This process still took over 12 minutes to copy 10,250 MB of data

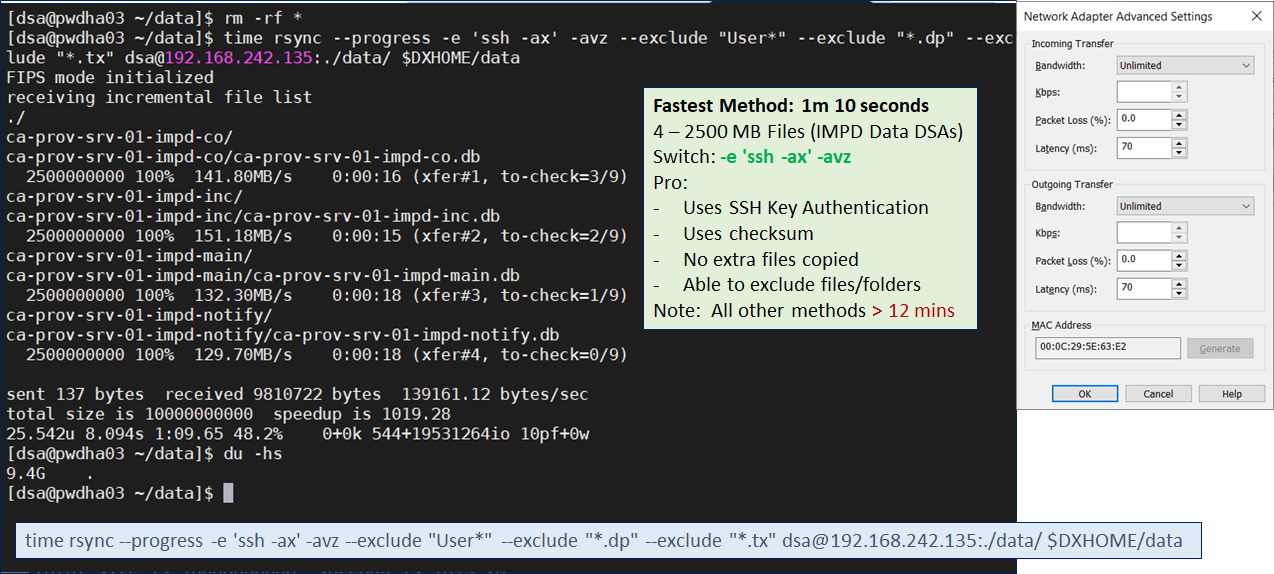

Rsync without compression: This process can exclude files/folders and has built-in checksum features (to allow a restart of a file if the connection is broken) and works over SSH as well. If the folder was not deleted prior, then this process would give artificial high-speed results. This process was able to exclude the UserStore DSA files and the transaction files (*.dp & *.tx) that are not required to be copied for use on a remote server. Only 10,000 MB (4 x 2500 MB) was copied instead of an extra 250 MB.

Rsync with compression: This process can exclude files/folders and has built-in checksum features (to allow a restart of a file if the connection is broken) and works over SSH as well. This process was the winner, and; extremely amazing performance over the other processes.

Total Time: 1 min 10 seconds for 10,000 MB of data over a WAN latency of 70 ms (140 ms R/T)

Now that we have found our winner, we need to do a few post steps to use the copied files. CA Directory, to maintain uniqueness between peer members of the multi-write (MW) group, have a unique name for the data folder and the data file. On the CA Identity Suite / Symantec IGA Virtual Appliance, pseudo nomenclature is used with two (2) digits.

The next step is to rename the folder and the files. Since the vApp is locked down for installing other tools that may be available for rename operations, we utilized the find and mv command with a regular xpression process to assist with these two (2) steps.

Complete Process Summarized with Validation

The below process was written within the default shell of ‘dsa’ userID ‘csh’. If the shell is changed to ‘bash’; update accordingly.

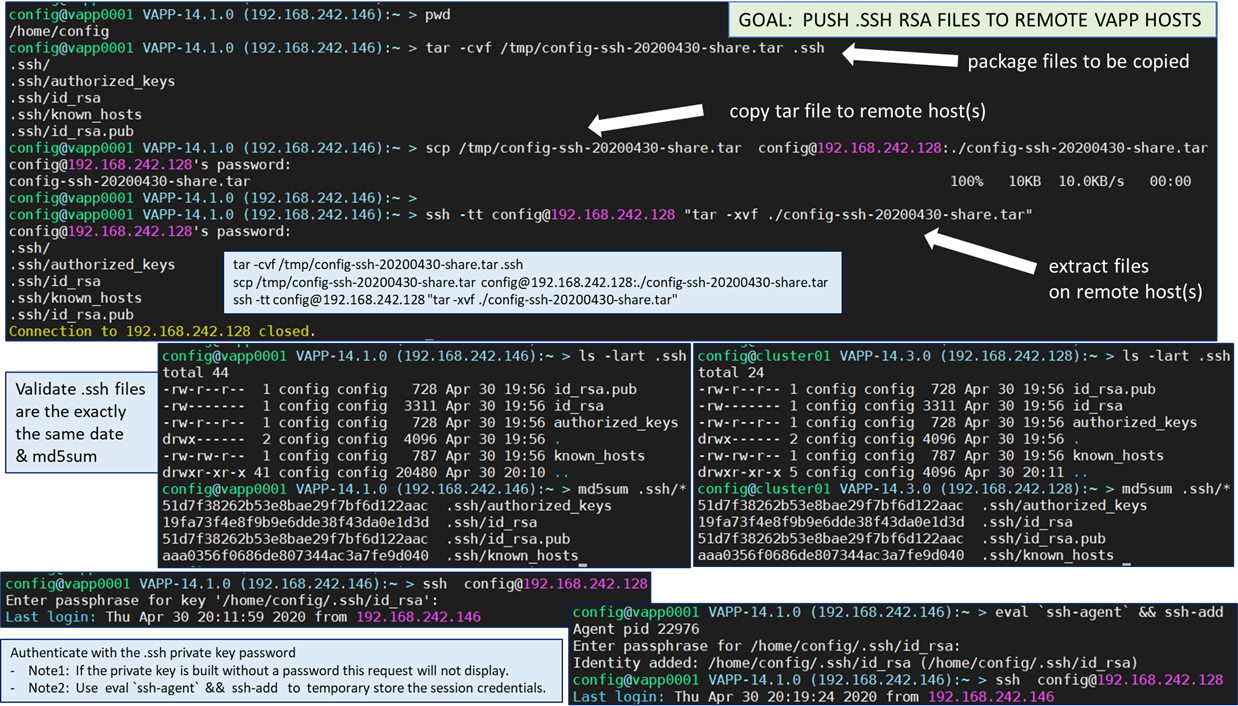

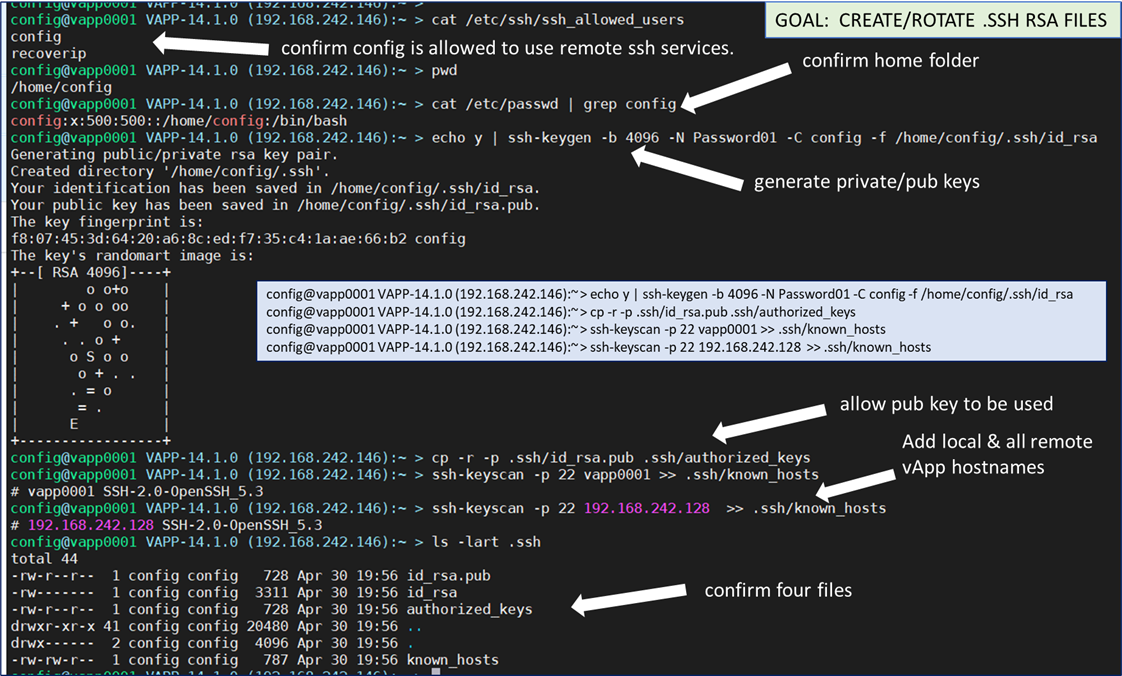

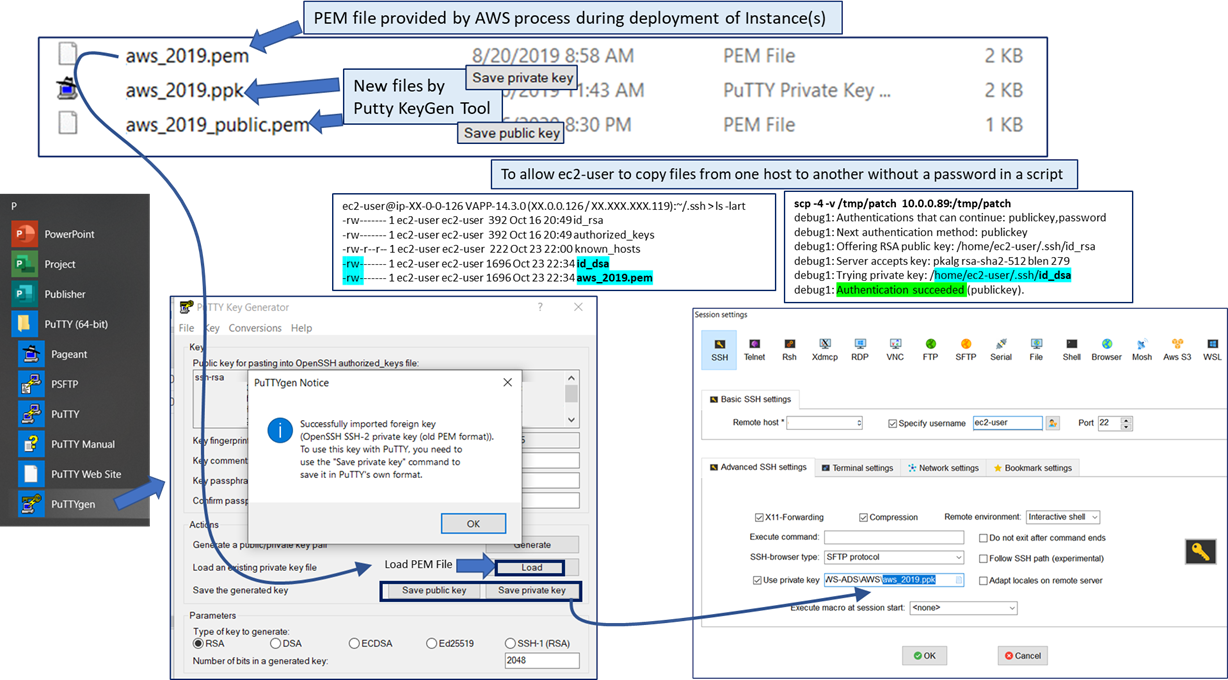

The below process also utilized a SSH RSA private/public key process that was previously generated for the ‘dsa’ user ID. If you are using the vApp, change the userID to config; and su – dsa to complete the necessary steps. You may need to add a copy operation between dsa & config userIDs.

Summary of using rsync with find/mv to rename copied IMPD *.db files/folders
[dsa@pwdha03 ~/data]$ dxserver status
ca-prov-srv-03-impd-main started
ca-prov-srv-03-impd-notify started
ca-prov-srv-03-impd-co started
ca-prov-srv-03-impd-inc started
ca-prov-srv-03-imps-router started
[dsa@pwdha03 ~/data]$ dxserver stop all > & /dev/null
[dsa@pwdha03 ~/data]$ du -hs
9.4G    .
[dsa@pwdha03 ~/data]$ eval `ssh-agent` && ssh-add
Agent pid 5395
Enter passphrase for /opt/CA/Directory/dxserver/.ssh/id_rsa:
Identity added: /opt/CA/Directory/dxserver/.ssh/id_rsa (/opt/CA/Directory/dxserver/.ssh/id_rsa)
[dsa@pwdha03 ~/data]$ rm -rf *
[dsa@pwdha03 ~/data]$ du -hs
4.0K    .
[dsa@pwdha03 ~/data]$ time rsync --progress -e 'ssh -ax' -avz --exclude "User*" --exclude "*.dp" --exclude "*.tx" dsa@192.168.242.135:./data/ $DXHOME/data
FIPS mode initialized
receiving incremental file list
./
ca-prov-srv-01-impd-co/
ca-prov-srv-01-impd-co/ca-prov-srv-01-impd-co.db
  2500000000 100%  143.33MB/s    0:00:16 (xfer#1, to-check=3/9)
ca-prov-srv-01-impd-inc/
ca-prov-srv-01-impd-inc/ca-prov-srv-01-impd-inc.db
  2500000000 100%  153.50MB/s    0:00:15 (xfer#2, to-check=2/9)
ca-prov-srv-01-impd-main/
ca-prov-srv-01-impd-main/ca-prov-srv-01-impd-main.db
  2500000000 100%  132.17MB/s    0:00:18 (xfer#3, to-check=1/9)
ca-prov-srv-01-impd-notify/
ca-prov-srv-01-impd-notify/ca-prov-srv-01-impd-notify.db
  2500000000 100%  130.91MB/s    0:00:18 (xfer#4, to-check=0/9)
sent 137 bytes  received 9810722 bytes  139161.12 bytes/sec
total size is 10000000000  speedup is 1019.28
27.237u 5.696s 1:09.43 47.4%    0+0k 128+19531264io 2pf+0w
[dsa@pwdha03 ~/data]$ ls
ca-prov-srv-01-impd-co  ca-prov-srv-01-impd-inc  ca-prov-srv-01-impd-main  ca-prov-srv-01-impd-notify
[dsa@pwdha03 ~/data]$ find $DXHOME/data/ -mindepth 1 -type d -exec bash -c 'mv  $0 ${0/01/03}' {} \; > & /dev/null
[dsa@pwdha03 ~/data]$ ls
ca-prov-srv-03-impd-co  ca-prov-srv-03-impd-inc  ca-prov-srv-03-impd-main  ca-prov-srv-03-impd-notify
[dsa@pwdha03 ~/data]$ find $DXHOME/data -depth -name '*.db' -exec bash -c 'mv  $0 ${0/01/03}' {} \; > & /dev/null
[dsa@pwdha03 ~/data]$ dxserver start all
Starting all dxservers
ca-prov-srv-03-impd-main starting
..
ca-prov-srv-03-impd-main started
ca-prov-srv-03-impd-notify starting
..
ca-prov-srv-03-impd-notify started
ca-prov-srv-03-impd-co starting
..
ca-prov-srv-03-impd-co started
ca-prov-srv-03-impd-inc starting
..
ca-prov-srv-03-impd-inc started
ca-prov-srv-03-imps-router starting
..
ca-prov-srv-03-imps-router started
[dsa@pwdha03 ~/data]$ du -hs
9.4G    .
[dsa@pwdha03 ~/data]$

Note: An enhancement has been open to request that the ‘dsa’ userID is able to use remote SSH processes to address any challenges if the Data IMPD DSAs need to be copied or retained for backup processes.

https://community.broadcom.com/participate/ideation-home/viewidea?IdeationKey=7c795c51-d028-4db8-adb1-c9df2dc48bff

Example for vApp Patches:

Note: There is no major different in speed if the files being copied are already compressed. The below image shows that initial copy is at the rate of the network w/ latency. The value gain from using rsync is still the checksum feature that allow auto-restart where it left off.

vApp Patch process refined to a few lines (to three nodes of a cluster deployment)

# PATCHES
# On Local vApp [as config userID]
mkdir -p patches  && cd patches
curl -L -O ftp://ftp.ca.com/pub/CAIdentitySuiteVA/cumulative-patches/14.3.0/CP-VA-140300-0002.tar.gpg
curl -L -O ftp://ftp.ca.com/pub/CAIdentitySuiteVA/cumulative-patches/14.3.0/CP-IMV-140300-0001.tgz.gpg
screen    [will open a new bash shell ]
patch_vapp CP-VA-140300-0002.tar.gpg           [Patch VA prior to any solution patch]
patch_vapp CP-IMV-140300-0001.tgz.gpg
exit          [exit screen]
cd ..
# Push from one host to another via scp
IP=192.168.242.136;scp -r patches  config@$IP:
IP=192.168.242.137;scp -r patches  config@$IP:
# Push from one host to another via rsync over ssh          [Minor gain for compressed files]
IP=192.168.242.136;rsync --progress -e 'ssh -ax' -avz $HOME/patches config@$IP:
IP=192.168.242.137;rsync --progress -e 'ssh -ax' -avz $HOME/patches config@$IP:

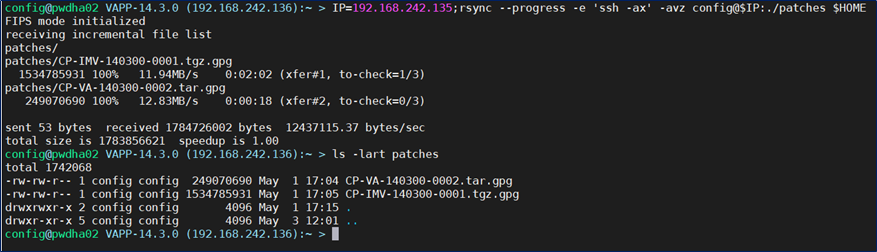

# Pull from one host to another via rsync over ssh          [Minor gain for compressed files]
IP=192.168.242.135;rsync --progress -e 'ssh -ax' -avz config@$IP:./patches $HOME
# View the files were patched
IP=192.168.242.136;ssh -tt config@$IP "ls -lart patches"
IP=192.168.242.137;ssh -tt config@$IP "ls -lart patches"
# On Remote vApp Node #2
IP=192.168.242.136;ssh $IP
cd patches
screen    [will open a new bash shell ]
patch_vapp CP-VA-140300-0002.tar.gpg
patch_vapp CP-IMV-140300-0001.tgz.gpg
exit          [exit screen]
exit          [exit to original host]
# On Remote vApp Node #3
IP=192.168.242.137;ssh $IP
cd patches
screen    [will open a new bash shell ]
patch_vapp CP-VA-140300-0002.tar.gpg
patch_vapp CP-IMV-140300-0001.tgz.gpg
exit          [exit screen]
exit          [exit to original host]

View of rotating the SSH RSA key for CONFIG User ID

# CONFIG - On local vApp host
ls -lart .ssh     [view any prior files]
echo y | ssh-keygen -b 4096 -N Password01 -C $USER -f $HOME/.ssh/id_rsa
IP=192.168.242.135;ssh-keyscan -p 22 $IP >> .ssh/known_hosts
IP=192.168.242.136;ssh-keyscan -p 22 $IP >> .ssh/known_hosts
IP=192.168.242.137;ssh-keyscan -p 22 $IP >> .ssh/known_hosts
cp -r -p .ssh/id_rsa.pub .ssh/authorized_keys
rm -rf /tmp/*.$USER.ssh-keys.tar
tar -cvf /tmp/`/bin/date -u +%s`.$USER.ssh-keys.tar .ssh
ls -lart /tmp/*.$USER.ssh-keys.tar
eval `ssh-agent` && ssh-add           [Enter Password for SSH RSA Private Key]
IP=192.168.242.136;scp `ls /tmp/*.$USER.ssh-keys.tar`  config@$IP:
IP=192.168.242.137;scp `ls /tmp/*.$USER.ssh-keys.tar`  config@$IP:
USER=config;ssh -tt $USER@192.168.242.136 "tar -xvf *.$USER.ssh-keys.tar"
USER=config;ssh -tt $USER@192.168.242.137 "tar -xvf *.$USER.ssh-keys.tar"
IP=192.168.242.136;ssh $IP `/bin/date -u +%s`
IP=192.168.242.137;ssh $IP `/bin/date -u +%s`
IP=192.168.242.136;ssh -vv $IP              [Use -vv to troubleshoot ssh process]
IP=192.168.242.137;ssh -vv $IP 				[Use -vv to troubleshoot ssh process]

Avoid locking a userID in a Virtual Appliance

The below post describes enabling the .ssh private key/public key process for the provided service IDs to avoid dependency on a password that may be forgotten, and also how to leverage the service IDs to address potential CA Directory data sync challenges that may occur when there are WAN network latency challenges between remote cluster nodes.

Background:

The CA/Broadcom/Symantec Identity Suite (IGA) solution provides for a software virtual appliance. This software appliance is available on Amazon AWS as a pre-built AMI image that allows for rapid deployment.

The software appliance is also offered as an OVA file for Vmware ESXi/Workstation deployment.

Challenge:

If the primary service ID is locked or password is allowed to expire, then the administrator will likely have only two (2) options:

1) Request assistance from the Vendor (for a supported process to reset the service ID – likely with a 2nd service ID “recoverip”)

2) Boot from an ISO image (if allowed) to mount the vApp as a data drive and update the primary service ID.

Proposal:

Add a standardized SSH RSA private/pubic key to the primary service ID, if it does not exist. If it exists, validate able to authentication and copy files between cluster nodes with the existing .SSH files. Rotate these files per internal security policies, e.g. 1/year.

The focus for this entry is on the CA ‘config’ and ‘ec2-user’ service IDs.

An enhancement request has been added, to have the ‘dsa’ userID added to the file’/etc/ssh/ssh_allowed_users’ to allow for the same .ssh RSA process to address challenges during deployments where the CA Directory Data DSA did not fully copy from one node to another node.

https://community.broadcom.com/participate/ideation-home/viewidea?IdeationKey=7c795c51-d028-4db8-adb1-c9df2dc48bff

AWS vApp: ‘ec2-user’

The primary service ID for remote SSH access is ‘ec2-user’ for the Amazon AWS is already deployed with a .ssh RSA private/public key. This is a requirement for AWS deployments and has been enabled to use this process.

This feature allows for access to be via the private key from a remote SSH session using Putty/MobaXterm or similar tools. Another feature may be leveraged by updating the ‘ec2-user’ .ssh folder to allow for other nodes to be exposed with this service ID, to assist with the deployment of patch files.

As an example, enabling .ssh service between multiple cluster nodes will reduce scp process from remote workstations. Prior, if there were five (5) vApp nodes, to patch them would require uploading the patch direct to each of the five (5) nodes. With enabling .ssh service between all nodes for the ‘ec2-user’ service ID, we only need to upload patches to one (1) node, then use a scp process to push these patch file(s) from one node to another cluster node.

On-Prem vApp: ‘config’

We wish to emulate this process for on-prem vApp servers to reduce I/O for any files to be uploaded and/or shared.

This process has strong value when CA Directory *.db files are out-of-sync or during initial deployment, there may be network issues and/or WAN latency.

Below is an example to create and/or rotate the private/public SSH RSA files for the ‘config’ service ID.

An example to create and/or rotate the private/public SSH RSA files for the ‘config’ service ID.

Below is an example to push the newly created SSH RSA files to the remote host(s) of the vApp cluster. After this step, we can now use scp processes to assist with remediation efforts within scripts without a password stored as clear text.

Copy the RSA folder to your workstation, to add to your Putty/MobaXterm or similar SSH tool, to allow remote authentication using the public key.

If you have any issues, use the embedded verbose logging within the ssh client tool (-vv) to identify the root issue.

ssh -vv userid@remote_hostname

Example:

config@vapp0001 VAPP-14.1.0 (192.168.242.146):~ > eval `ssh-agent` && ssh-add
Agent pid 5717
Enter passphrase for /home/config/.ssh/id_rsa:
Identity added: /home/config/.ssh/id_rsa (/home/config/.ssh/id_rsa)
config@vapp0001 VAPP-14.1.0 (192.168.242.146):~ >
config@vapp0001 VAPP-14.1.0 (192.168.242.146):~ > ssh -vv config@192.168.242.128
OpenSSH_5.3p1, OpenSSL 1.0.1e-fips 11 Feb 2013
debug1: Reading configuration data /etc/ssh/ssh_config
debug1: Applying options for *
debug2: ssh_connect: needpriv 0
debug1: Connecting to 192.168.242.128 [192.168.242.128] port 22.
debug1: Connection established.
debug1: identity file /home/config/.ssh/identity type -1
debug1: identity file /home/config/.ssh/identity-cert type -1
debug2: key_type_from_name: unknown key type '-----BEGIN'
debug2: key_type_from_name: unknown key type 'Proc-Type:'
debug2: key_type_from_name: unknown key type 'DEK-Info:'
debug2: key_type_from_name: unknown key type '-----END'
debug1: identity file /home/config/.ssh/id_rsa type 1
debug1: identity file /home/config/.ssh/id_rsa-cert type -1
debug1: identity file /home/config/.ssh/id_dsa type -1
debug1: identity file /home/config/.ssh/id_dsa-cert type -1
debug1: identity file /home/config/.ssh/id_ecdsa type -1
debug1: identity file /home/config/.ssh/id_ecdsa-cert type -1
debug1: Remote protocol version 2.0, remote software version OpenSSH_5.3
debug1: match: OpenSSH_5.3 pat OpenSSH*
debug1: Enabling compatibility mode for protocol 2.0
debug1: Local version string SSH-2.0-OpenSSH_5.3
debug2: fd 3 setting O_NONBLOCK
debug1: SSH2_MSG_KEXINIT sent
debug1: SSH2_MSG_KEXINIT received
debug2: kex_parse_kexinit: diffie-hellman-group-exchange-sha256,diffie-hellman-group-exchange-sha1,diffie-hellman-group14-sha1,diffie-hellman-group1-sha1
debug2: kex_parse_kexinit: ssh-rsa-cert-v01@openssh.com,ssh-dss-cert-v01@openssh.com,ssh-rsa-cert-v00@openssh.com,ssh-dss-cert-v00@openssh.com,ssh-rsa,ssh-dss
debug2: kex_parse_kexinit: aes128-ctr,aes192-ctr,aes256-ctr,aes128-cbc,3des-cbc,blowfish-cbc,cast128-cbc,aes192-cbc,aes256-cbc,rijndael-cbc@lysator.liu.se
debug2: kex_parse_kexinit: aes128-ctr,aes192-ctr,aes256-ctr,aes128-cbc,3des-cbc,blowfish-cbc,cast128-cbc,aes192-cbc,aes256-cbc,rijndael-cbc@lysator.liu.se
debug2: kex_parse_kexinit: hmac-sha1,umac-64@openssh.com,hmac-sha2-256,hmac-sha2-512,hmac-ripemd160,hmac-ripemd160@openssh.com,hmac-sha1-96
debug2: kex_parse_kexinit: hmac-sha1,umac-64@openssh.com,hmac-sha2-256,hmac-sha2-512,hmac-ripemd160,hmac-ripemd160@openssh.com,hmac-sha1-96
debug2: kex_parse_kexinit: none,zlib@openssh.com,zlib
debug2: kex_parse_kexinit: none,zlib@openssh.com,zlib
debug2: kex_parse_kexinit:
debug2: kex_parse_kexinit:
debug2: kex_parse_kexinit: first_kex_follows 0
debug2: kex_parse_kexinit: reserved 0
debug2: kex_parse_kexinit: diffie-hellman-group-exchange-sha256,diffie-hellman-group-exchange-sha1,diffie-hellman-group14-sha1
debug2: kex_parse_kexinit: ssh-rsa,ssh-dss
debug2: kex_parse_kexinit: aes128-ctr,aes192-ctr,aes256-ctr,aes128-cbc,3des-cbc,aes192-cbc,aes256-cbc,rijndael-cbc@lysator.liu.se
debug2: kex_parse_kexinit: aes128-ctr,aes192-ctr,aes256-ctr,aes128-cbc,3des-cbc,aes192-cbc,aes256-cbc,rijndael-cbc@lysator.liu.se
debug2: kex_parse_kexinit: hmac-sha1,hmac-sha2-256,hmac-sha2-512
debug2: kex_parse_kexinit: hmac-sha1,hmac-sha2-256,hmac-sha2-512
debug2: kex_parse_kexinit: none
debug2: kex_parse_kexinit: none
debug2: kex_parse_kexinit:
debug2: kex_parse_kexinit:
debug2: kex_parse_kexinit: first_kex_follows 0
debug2: kex_parse_kexinit: reserved 0
debug2: mac_setup: found hmac-sha1
debug1: kex: server->client aes128-ctr hmac-sha1 none
debug2: mac_setup: found hmac-sha1
debug1: kex: client->server aes128-ctr hmac-sha1 none
debug1: SSH2_MSG_KEX_DH_GEX_REQUEST(1024<2048<8192) sent
debug1: expecting SSH2_MSG_KEX_DH_GEX_GROUP
debug2: dh_gen_key: priv key bits set: 141/320
debug2: bits set: 1027/2048
debug1: SSH2_MSG_KEX_DH_GEX_INIT sent
debug1: expecting SSH2_MSG_KEX_DH_GEX_REPLY
debug1: Host '192.168.242.128' is known and matches the RSA host key.
debug1: Found key in /home/config/.ssh/known_hosts:2
debug2: bits set: 991/2048
debug1: ssh_rsa_verify: signature correct
debug2: kex_derive_keys
debug2: set_newkeys: mode 1
debug1: SSH2_MSG_NEWKEYS sent
debug1: expecting SSH2_MSG_NEWKEYS
debug2: set_newkeys: mode 0
debug1: SSH2_MSG_NEWKEYS received
debug1: SSH2_MSG_SERVICE_REQUEST sent
debug2: service_accept: ssh-userauth
debug1: SSH2_MSG_SERVICE_ACCEPT received
debug2: key: /home/config/.ssh/id_rsa (0x5648110d2a00)
debug2: key: /home/config/.ssh/identity ((nil))
debug2: key: /home/config/.ssh/id_dsa ((nil))
debug2: key: /home/config/.ssh/id_ecdsa ((nil))
debug1: Authentications that can continue: publickey,gssapi-keyex,gssapi-with-mic,password
debug1: Next authentication method: gssapi-keyex
debug1: No valid Key exchange context
debug2: we did not send a packet, disable method
debug1: Next authentication method: gssapi-with-mic
debug1: Unspecified GSS failure.  Minor code may provide more information
Improper format of Kerberos configuration file

debug1: Unspecified GSS failure.  Minor code may provide more information
Improper format of Kerberos configuration file

debug2: we did not send a packet, disable method
debug1: Next authentication method: publickey
debug1: Offering public key: /home/config/.ssh/id_rsa
debug2: we sent a publickey packet, wait for reply
debug1: Server accepts key: pkalg ssh-rsa blen 533
debug2: input_userauth_pk_ok: SHA1 fp 39:06:95:0d:13:4b:9a:29:0b:28:b6:bd:3d:b0:03:e8:3c:ad:50:6f
debug1: Authentication succeeded (publickey).
debug1: channel 0: new [client-session]
debug2: channel 0: send open
debug1: Requesting no-more-sessions@openssh.com
debug1: Entering interactive session.
debug2: callback start
debug2: client_session2_setup: id 0
debug2: channel 0: request pty-req confirm 1
debug1: Sending environment.
debug1: Sending env LANG = en_US.UTF-8
debug2: channel 0: request env confirm 0
debug2: channel 0: request shell confirm 1
debug2: fd 3 setting TCP_NODELAY
debug2: callback done
debug2: channel 0: open confirm rwindow 0 rmax 32768
debug2: channel_input_status_confirm: type 99 id 0
debug2: PTY allocation request accepted on channel 0
debug2: channel 0: rcvd adjust 2097152
debug2: channel_input_status_confirm: type 99 id 0
debug2: shell request accepted on channel 0
Last login: Thu Apr 30 20:21:48 2020 from 192.168.242.146

CA Identity Suite Virtual Appliance version 14.3.0 - SANDBOX mode
FIPS enabled:                   true
Server IP addresses:            192.168.242.128
Enabled services:
Identity Portal               192.168.242.128 [OK] WildFly (Portal) is running (pid 10570), port 8081
                                              [OK] Identity Portal Admin UI is available
                                              [OK] Identity Portal User Console is available
                                              [OK] Java heap size used by Identity Portal: 810MB/1512MB (53%)
Oracle Database Express 11g   192.168.242.128 [OK] Oracle Express Edition started
Identity Governance           192.168.242.128 [OK] WildFly (IG) is running (pid 8050), port 8082
                                              [OK] IG is running
                                              [OK] Java heap size used by Identity Governance: 807MB/1512MB (53%)
Identity Manager              192.168.242.128 [OK] WildFly (IDM) is running (pid 5550), port 8080
                                              [OK] IDM environment is started
                                              [OK] idm-userstore-router-caim-srv-01 started
                                              [OK] Java heap size used by Identity Manager: 1649MB/4096MB (40%)
Provisioning Server           192.168.242.128 [OK] im_ps is running
                                              [OK] co file usage: 1MB/250MB (0%)
                                              [OK] inc file usage: 1MB/250MB (0%)
                                              [OK] main file usage: 9MB/250MB (3%)
                                              [OK] notify file usage: 1MB/250MB (0%)
                                              [OK] All DSAs are started
Connector Server              192.168.242.128 [OK] jcs is running
User Store                    192.168.242.128 [OK] STATS: number of objects in cache: 5
                                              [OK] file usage: 1MB/200MB (0%)
                                              [OK] UserStore_userstore-01 started
Central Log Server            192.168.242.128 [OK] rsyslogd (pid  1670) is running...
=== LAST UPDATED: Fri May  1 12:15:05 CDT 2020 ====
*** [WARN] Volume / has 13% Free space (6.2G out of 47G)
config@cluster01 VAPP-14.3.0 (192.168.242.128):~ >

A view into rotating the SSH RSA keys for the CONFIG UserID

# CONFIG - On local vApp host
ls -lart .ssh     [view any prior files]
echo y | ssh-keygen -b 4096 -N Password01 -C $USER -f $HOME/.ssh/id_rsa
IP=192.168.242.135;ssh-keyscan -p 22 $IP >> .ssh/known_hosts
IP=192.168.242.136;ssh-keyscan -p 22 $IP >> .ssh/known_hosts
IP=192.168.242.137;ssh-keyscan -p 22 $IP >> .ssh/known_hosts
cp -r -p .ssh/id_rsa.pub .ssh/authorized_keys
rm -rf /tmp/*.$USER.ssh-keys.tar
tar -cvf /tmp/`/bin/date -u +%s`.$USER.ssh-keys.tar .ssh
ls -lart /tmp/*.$USER.ssh-keys.tar
eval `ssh-agent` && ssh-add           [Enter Password for SSH RSA Private Key]
IP=192.168.242.136;scp `ls /tmp/*.$USER.ssh-keys.tar`  config@$IP:
IP=192.168.242.137;scp `ls /tmp/*.$USER.ssh-keys.tar`  config@$IP:
USER=config;ssh -tt $USER@192.168.242.136 "tar -xvf *.$USER.ssh-keys.tar"
USER=config;ssh -tt $USER@192.168.242.137 "tar -xvf *.$USER.ssh-keys.tar"
IP=192.168.242.136;ssh $IP `/bin/date -u +%s`
IP=192.168.242.137;ssh $IP `/bin/date -u +%s`
IP=192.168.242.136;ssh -vv $IP              [Use -vv to troubleshoot ssh process]
IP=192.168.242.137;ssh -vv $IP 				[Use -vv to troubleshoot ssh process]
